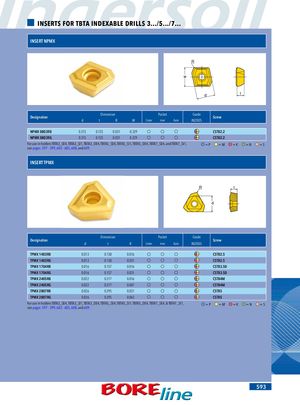

INSERTS FOR TBTA INDEXABLE DRILLS 3.../5.../7... INSERT NPMX R w d t Dimension Pocket Grade Designation Screw d t R W Center Inner Outer IN2005 NPMX 0803RB 0.315 0.125 0.031 0.329 CSTB2.2 NPMX 0803RG 0.315 0.125 0.031 0.329 CSTB2.2 For use in holders TBTA3_SE4, TBTA3_SI1, TBTA3_DE4, TBTA5_SE4, TBTA5_SI1, TBTA5_DE4, TBTA7_SE4, and TBTA7_SI1, =P =M =K =N =S see pages 597 - 599, 603 - 605, 608, and 609. INSERT TPMX R t d Dimension Pocket Grade Designation Screw d t R Center Inner Outer IN2005 TPMX 1403RB 0.013 0.138 0.016 CSTB2.5 TPMX 1403RG 0.013 0.138 0.031 CSTB2.5 TPMX 1704RB 0.016 0.157 0.016 CSTB3.5D TPMX 1704RG 0.016 0.157 0.031 CSTB3.5D TPMX 2405RB 0.022 0.217 0.016 CSTB4M TPMX 2405RG 0.022 0.217 0.047 CSTB4M TPMX 2807RB 0.026 0.295 0.031 CSTB5 TPMX 2807RG 0.026 0.295 0.063 CSTB5 For use in holders TBTA3_SE4, TBTA3_SI1, TBTA3_DE4, TBTA5_SE4, TBTA5_SI1, TBTA5_DE4, TBTA7_SE4, & TBTA7_SI1, =P =M =K =N =S see pages 597 - 599, 603 - 605, 608, and 609. 593
