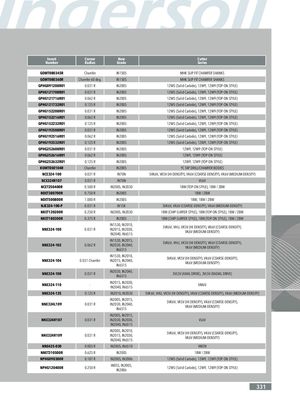

Insert Corner New Cutter Number Radius Grade Series GOMT080345R Chamfer IN1505 MHK SLIP FIT CHAMFER SHANKS GOMT080360R Chamfer 60 deg. IN1505 MHK SLIP FIT CHAMFER SHANKS GPHG091208R01 0.031 R IN2005 12W5 (Solid Carbide), 12W9, 12W9 (TOP-ON STYLE) GPHG121708R01 0.031 R IN2005 12W5 (Solid Carbide), 12W9, 12W9 (TOP-ON STYLE) GPHG121716R01 0.062 R IN2005 12W5 (Solid Carbide), 12W9, 12W9 (TOP-ON STYLE) GPHG121732R01 0.125 R IN2005 12W5 (Solid Carbide), 12W9, 12W9 (TOP-ON STYLE) GPHG152208R01 0.031 R IN2005 12W5 (Solid Carbide), 12W9, 12W9 (TOP-ON STYLE) GPHG152216R01 0.062 R IN2005 12W5 (Solid Carbide), 12W9, 12W9 (TOP-ON STYLE) GPHG152232R01 0.125 R IN2005 12W5 (Solid Carbide), 12W9, 12W9 (TOP-ON STYLE) GPHG192508R01 0.031 R IN2005 12W5 (Solid Carbide), 12W9, 12W9 (TOP-ON STYLE) GPHG192516R01 0.062 R IN2005 12W5 (Solid Carbide), 12W9, 12W9 (TOP-ON STYLE) GPHG192532R01 0.125 R IN2005 12W5 (Solid Carbide), 12W9, 12W9 (TOP-ON STYLE) GPHG252608R01 0.031 R IN2005 12W9, 12W9 (TOP-ON STYLE) GPHG252616R01 0.062 R IN2005 12W9, 12W9 (TOP-ON STYLE) GPHG252632R01 0.125 R IN2005 12W9, 12W9 (TOP-ON STYLE) KOMT050104R Chamfer IN2005 YC TAP DRILL/CHAMFER BODIES NCE324-100 0.031 R IN70N 5VK6V, VK5V (HI DENSITY), VK6V (COARSE-DENSITY), VK6V (MEDIUM-DENSITY) NCE324R107 0.031 R IN70N VL6V NCET250400R 0.500 R IN2005, IN2030 1BW (TOP-ON STYLE), 1BW / 2BW NDET380700R 0.750 R IN2005 1BW / 2BW NDET500800R 1.000 R IN2005 1BW, 1BW / 2BW NJE324-100-P 0.031 R IN15K 5VK6V, VK6V (COARSE-DENSITY), VK6V (MEDIUM-DENSITY) NKET120200R 0.250 R IN2005, IN2030 1BW (CHIP-SURFER STYLE), 1BW (TOP-ON STYLE), 1BW / 2BW NKET180300R 0.375 R IN2005 1BW (CHIP-SURFER STYLE), 1BW (TOP-ON STYLE), 1BW / 2BW IN1530, IN2010,NNE324-1000.031 RIN2015, IN2030,IN2040, IN65155VK6V, VHU, VK5V (HI DENSITY), VK6V (COARSE-DENSITY),VK6V (MEDIUM-DENSITY) IN1530, IN2015,NNE324-1020.062 RIN2030, IN2040,IN65155VK6V, VHU, VK5V (HI DENSITY), VK6V (COARSE-DENSITY),VK6V (MEDIUM-DENSITY) IN1530, IN2010,NNE324-1040.031 ChamferIN2015, IN2040,IN65155VK6V, VK5V (HI DENSITY), VK6V (COARSE-DENSITY),VK6V (MEDIUM-DENSITY) NNE324-108 0.031 R IN2030, IN2040,IN6515 3VL5V (AXIAL DRIVE), 3VL5V (RADIAL DRIVE) NNE324-110 - IN2015, IN2030,IN2040, IN6515 VM6V NNE324-125 0.125 R IN2010, IN2030 5VK6V, VHU, VK5V (HI DENSITY), VK6V (COARSE-DENSITY), VK6V (MEDIUM-DENSITY) IN2005, IN2015,NNE324L1090.031 RIN2030, IN2040,IN65155VK6V, VK5V (HI DENSITY), VK6V (COARSE-DENSITY),VK6V (MEDIUM-DENSITY) IN2005, IN2015, NNE324R107 0.031 R IN2030, IN2030, VL6V IN2040, IN6515 IN2005, IN2010,NNE324R1090.031 RIN2015, IN2030,IN2040, IN65155VK6V, VK5V (HI DENSITY), VK6V (COARSE-DENSITY),VK6V (MEDIUM-DENSITY) NNE425-030 0.005 R IN2005, IN6510 VM2N NNET310500R 0.625 R IN2005 1BW / 2BW NPHG090300R 0.187 R IN2005, IN2006 12W5 (Solid Carbide), 12W9, 12W9 (TOP-ON STYLE) NPHG120400R 0.250 R IN05S, IN2005,IN2006 12W5 (Solid Carbide), 12W9, 12W9 (TOP-ON STYLE) 331
