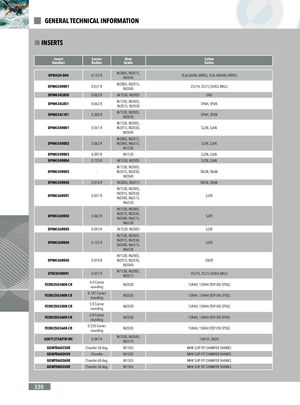

GENERAL TECHNICAL INFORMATION n INSERTS Insert Corner New Cutter Number Radius Grade Series DPM424-004 0.125 R IN2005, IN2015,IN2040 3SJ6 (AXIAL DRIVE), 3SJ6 (RADIAL DRIVE) DPM424R001 0.031 R IN2005, IN2015,IN2040 2SJ1H, 2SJ1L (SHELL MILL) DPM434L050 0.062 R IN1530, IN2005 SHU DPM434L051 0.062 R IN1530, IN2005,IN2015, IN2030 SP6H, SP6N DPM434L101 0.200 R IN1530, IN2005,IN2030 SP6H, SP6N IN1530, IN2005, DPM434R001 0.031 R IN2015, IN2030, SJ2N, SJ6N IN2040 IN2005, IN2015, DPM434R002 0.062 R IN2040, IN6515, SJ2N, SJ6N IN1530 DPM434R003 0.093 R IN1530 SJ2N, SJ6N DPM434R004 0.125 R IN1530, IN2005 SJ2N, SJ6N IN1530, IN2005, DPM434R045 - IN2015, IN2030, SN2N, SN6N IN2040 DPM435R045 0.010 R IN2005, IN2015 SN2N, SN6N IN1530, IN2005, DPM436R001 0.031 R IN2015, IN2030,IN2040, IN6515, SJ2R IN6530 IN1530, IN2005, DPM436R002 0.062 R IN2015, IN2030,IN2040, IN6515, SJ2R IN6530 DPM436R003 0.093 R IN1530, IN2005 SJ2R IN1530, IN2005, DPM436R004 0.125 R IN2015, IN2030,IN2040, IN6515, SJ2R IN6530 IN1530, IN2005, DPM436R045 0.010 R IN2015, IN2030, SN2R IN2040 DTM324R001 0.031 R IN1530, IN2005,IN2015 2SJ1H, 2SJ1L (SHELL MILL) FEEW250340R-CR 4.0 Cornerrounding IN2030 15R4H, 15R4H (TOP-ON STYLE) FEEW250348R-CR 0.187 Cornerrounding IN2030 15R4H, 15R4H (TOP-ON STYLE) FEEW250350R-CR 5.0 Cornerrounding IN2030 15R4H, 15R4H (TOP-ON STYLE) FEEW250360R-CR 6.0 Cornerrounding IN2030 15R4H, 15R4H (TOP-ON STYLE) FEEW250364R-CR 0.250 Cornerrounding IN2030 15R4H, 15R4H (TOP-ON STYLE) GEKT12T3AFTR-WC 0.047 R IN1030, IN2040,IN2510 15N1H, 5N2H GOMT060230R Chamfer 30 deg. IN1505 MHK SLIP FIT CHAMFER SHANKS GOMT060245R Chamfer IN1505 MHK SLIP FIT CHAMFER SHANKS GOMT060260R Chamfer 60 deg. IN1505 MHK SLIP FIT CHAMFER SHANKS GOMT080330R Chamfer 30 deg. IN1505 MHK SLIP FIT CHAMFER SHANKS 330
