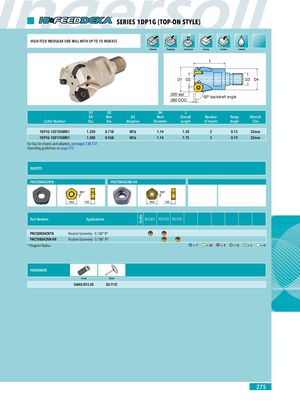

SERIES 1DP1G (TOP-ON STYLE) HIGH FEED MODULAR END MILL WITH UP TO 10 INDEXES Channel Ramping Corkscrew Facing Contour Coolant L D1 D2 D3 D4 .020 wpr 92º backdraft angle .060 DOC D1 D2 D4 L Eff. Min. D3 Neck Overall Number Ramp Wrench Cutter Number Dia. Dia. Adaption Diameter Length of Inserts Angle Size 1DP1G-12015X8R01 1.250 0.718 M16 1.14 1.50 2 0.15 22mm 1DP1G-15017X8R01 1.500 0.968 M16 1.14 1.75 3 0.19 22mm For Top-On shanks and adaptors, see pages 730-737. Operating guidelines on page 372. INSERTS PNCQ0804ZNTN PNCT0804ZNN-HR wpr wpr .452 .165 .452 .165 Part Number Applications IN2005 IN2030 IN2505 PNCQ0804ZNTN Neutral Geometry - 0.180" R* PNCT0804ZNN-HR Positive Geometry - 0.180" R* * Program Radius =P =M =K =N =S =H HARDWARE Screw Driver SM40-093-20 DS-T15T 275 Grade
