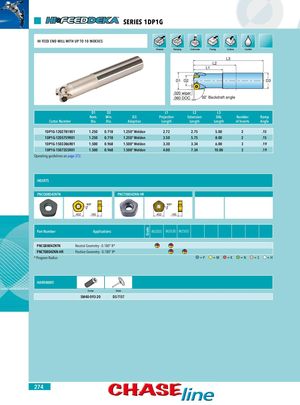

SERIES 1DP1G HI FEED END MILL WITH UP TO 10 INDEXES Channel Ramping Corkscrew Facing Contour Coolant L3 L2 L1 D1 D2 D3 .020 wiper .060 DOC 92˚ Backdraft angle D1 D2 L1 L2 L3 Nom. Min. D3 Projection Extension OAL Number Ramp Cutter Number Dia. Dia. Adaption Length Length Length of Inserts Angle 1DP1G-1202781R01 1.250 0.718 1.250" Weldon 2.72 2.75 5.00 2 .15 1DP1G-12057S9R01 1.250 0.718 1.250" Weldon 3.50 5.75 8.00 2 .15 1DP1G-1503386R01 1.500 0.968 1.500" Weldon 3.30 3.34 6.00 3 .19 1DP1G-15073S5R01 1.500 0.968 1.500" Weldon 4.00 7.34 10.00 3 .19 Operating guidelines on page 372. INSERTS PNCQ0804ZNTN PNCT0804ZNN-HR wpr wpr .452 .165 .452 .165 Part Number Applications IN2005 IN2030 IN2505 PNCQ0804ZNTN Neutral Geometry - 0.180" R* PNCT0804ZNN-HR Positive Geometry - 0.180" R* * Program Radius =P =M =K =N =S =H HARDWARE Screw Driver SM40-093-20 DS-T15T 274 Grade
