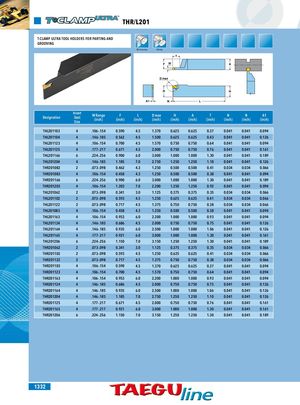

THR/L201 T-CLAMP ULTRA TOOL HOLDERS FOR PARTING AND GROOVING OD Grooving Parting T F W A D max H H A1 N L Designation InsertSeatSizeW Range(inch) F L D max H A T N N A1(inch)(inch)(inch)(inch)(inch)(inch)(inch)(inch)(inch) THL201103 4 .106-.154 0.590 4.5 1.370 0.625 0.625 0.37 0.041 0.041 0.094 THL201104 4 .146-.185 0.562 4.5 1.500 0.625 0.625 0.43 0.041 0.041 0.126 THL201123 4 .106-.154 0.700 4.5 1.570 0.750 0.750 0.64 0.041 0.041 0.094 THL201125 4 .177-.217 0.671 4.5 2.000 0.750 0.750 0.76 0.041 0.041 0.161 THL201166 6 .224-.256 0.900 6.0 3.000 1.000 1.000 1.30 0.041 0.041 0.189 THL201204 4 .146-.185 1.185 7.0 2.750 1.250 1.250 1.10 0.041 0.041 0.126 THR201082 2 .073-.098 0.462 4.3 1.250 0.500 0.500 0.41 0.034 0.034 0.066 THR201083 4 .106-.154 0.458 4.3 1.250 0.500 0.500 0.38 0.041 0.041 0.094 THR201166 6 .224-.256 0.900 6.0 3.000 1.000 1.000 1.30 0.041 0.041 0.189 THR201203 4 .106-.154 1.203 7.0 2.200 1.250 1.250 0.92 0.041 0.041 0.094 THL201062 2 .073-.098 0.341 3.0 1.125 0.375 0.375 0.35 0.034 0.034 0.066 THL201102 2 .073-.098 0.593 4.5 1.250 0.625 0.625 0.41 0.034 0.034 0.066 THL201122 2 .073-.098 0.717 4.5 1.375 0.750 0.750 0.38 0.034 0.034 0.066 THL201083 4 .106-.154 0.458 4.3 1.250 0.500 0.500 0.38 0.041 0.041 0.094 THL201163 4 .106-.154 0.953 6.0 2.200 1.000 1.000 0.93 0.041 0.041 0.094 THL201124 4 .146-.185 0.686 4.5 2.000 0.750 0.750 0.75 0.041 0.041 0.126 THL201164 4 .146-.185 0.935 6.0 2.500 1.000 1.000 1.06 0.041 0.041 0.126 THL201165 4 .177-.217 0.921 6.0 3.000 1.000 1.000 1.30 0.041 0.041 0.161 THL201206 6 .224-.256 1.150 7.0 3.150 1.250 1.250 1.30 0.041 0.041 0.189 THR201062 2 .073-.098 0.341 3.0 1.125 0.375 0.375 0.35 0.034 0.034 0.066 THR201102 2 .073-.098 0.593 4.5 1.250 0.625 0.625 0.41 0.034 0.034 0.066 THR201122 2 .073-.098 0.717 4.5 1.375 0.750 0.750 0.38 0.034 0.034 0.066 THR201103 4 .106-.154 0.590 4.5 1.370 0.625 0.625 0.37 0.041 0.041 0.094 THR201123 4 .106-.154 0.700 4.5 1.570 0.750 0.750 0.64 0.041 0.041 0.094 THR201163 4 .106-.154 0.953 6.0 2.200 1.000 1.000 0.93 0.041 0.041 0.094 THR201124 4 .146-.185 0.686 4.5 2.000 0.750 0.750 0.75 0.041 0.041 0.126 THR201164 4 .146-.185 0.935 6.0 2.500 1.000 1.000 1.06 0.041 0.041 0.126 THR201204 4 .146-.185 1.185 7.0 2.750 1.250 1.250 1.10 0.041 0.041 0.126 THR201125 4 .177-.217 0.671 4.5 2.000 0.750 0.750 0.76 0.041 0.041 0.161 THR201165 4 .177-.217 0.921 6.0 3.000 1.000 1.000 1.30 0.041 0.041 0.161 THR201206 6 .224-.256 1.150 7.0 3.150 1.250 1.250 1.30 0.041 0.041 0.189 1332
