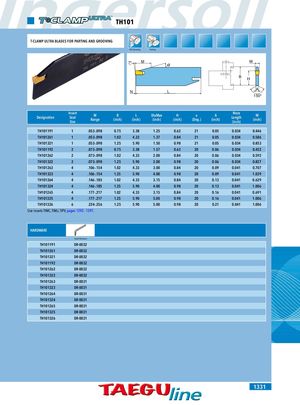

TH101 T-CLAMP ULTRA BLADES FOR PARTING AND GROOVING OD Grooving Parting 7° M W B H N L A 150° Designation InsertSeatSize WRange B L(inch)(inch) DiaMax(inch) H a A(inch)(Deg.)(inch)NoseLength(inch)M(inch) TH101191 1 .053-.098 0.75 3.38 1.25 0.62 21 0.05 0.034 0.446 TH101261 1 .053-.098 1.02 4.33 1.37 0.84 21 0.05 0.034 0.586 TH101321 1 .053-.098 1.25 5.90 1.50 0.98 21 0.05 0.034 0.853 TH101192 2 .073-.098 0.75 3.38 1.57 0.62 20 0.06 0.034 0.452 TH101262 2 .073-.098 1.02 4.33 2.00 0.84 20 0.06 0.034 0.592 TH101322 2 .073-.098 1.25 5.90 2.00 0.98 20 0.06 0.034 0.827 TH101263 4 .106-.154 1.02 4.33 3.00 0.84 20 0.09 0.041 0.707 TH101323 4 .106-.154 1.25 5.90 4.00 0.98 20 0.09 0.041 1.039 TH101264 4 .146-.185 1.02 4.33 3.15 0.84 20 0.13 0.041 0.629 TH101324 4 .146-.185 1.25 5.90 4.00 0.98 20 0.13 0.041 1.006 TH101265 4 .177-.217 1.02 4.33 3.15 0.84 20 0.16 0.041 0.691 TH101325 4 .177-.217 1.25 5.90 5.00 0.98 20 0.16 0.041 1.006 TH101326 6 .224-.256 1.25 5.90 5.00 0.98 20 0.21 0.041 1.006 Use inserts TIMC, TIMJ, TIPV, pages 1292 - 1297. HARDWARE Insert Extractor TH101191 DR-0032 TH101261 DR-0032 TH101321 DR-0032 TH101192 DR-0032 TH101262 DR-0032 TH101322 DR-0032 TH101263 DR-0031 TH101323 DR-0031 TH101264 DR-0031 TH101324 DR-0031 TH101265 DR-0031 TH101325 DR-0031 TH101326 DR-0031 1331
