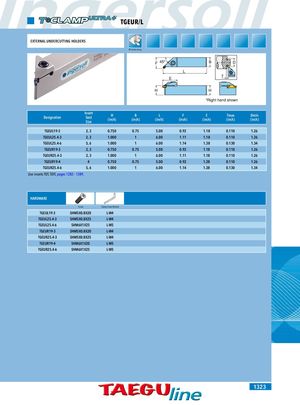

TGEUR/L EXTERNAL UNDERCUTTING HOLDERS OD Undercutting F 45° B D L E T H H *Right hand shown Designation InsertSeatSize H(inch) B(inch) L(inch) F(inch) E(inch) Tmax(inch) Dmin(inch) TGEUL19-3 2, 3 0.750 0.75 5.00 0.92 1.18 0.110 1.26 TGEUL25.4-3 2, 3 1.000 1 6.00 1.11 1.18 0.110 1.26 TGEUL25.4-6 5, 6 1.000 1 6.00 1.14 1.38 0.130 1.34 TGEUR19-3 2, 3 0.750 0.75 5.00 0.92 1.18 0.110 1.26 TGEUR25.4-3 2, 3 1.000 1 6.00 1.11 1.18 0.110 1.26 TGEUR19-4 4 0.750 0.75 5.00 0.92 1.28 0.110 1.26 TGEUR25.4-6 5, 6 1.000 1 6.00 1.14 1.38 0.130 1.34 Use inserts TDT, TDIT, pages 1282 - 1289. HARDWARE Screw Clamp Screw Wrench TGEUL19-3 SHM5X0.8X20 L-W4 TGEUL25.4-3 SHM5X0.8X25 L-W4 TGEUL25.4-6 SHM6X1X25 L-W5 TGEUR19-3 SHM5X0.8X20 L-W4 TGEUR25.4-3 SHM5X0.8X25 L-W4 TGEUR19-4 SHM6X1X20 L-W5 TGEUR25.4-6 SHM6X1X25 L-W5 1323
