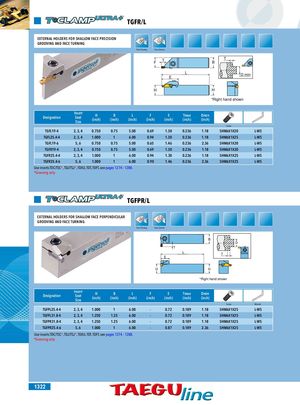

TGFR/L EXTERNAL HOLDERS FOR SHALLOW FACE PRECISION GROOVING AND FACE TURNING Face Turning Face Groove F T TB L D min E H H *Right hand shown Designation InsertSeatSizeH(inch) B(inch) L(inch) F(inch) E(inch) Tmax(inch) Dmin(inch) Screw TGFL19-4 2, 3, 4 0.750 0.75 5.00 0.69 1.30 0.236 1.18 SHM6X1X20 L-W5 TGFL25.4-4 2, 3, 4 1.000 1 6.00 0.94 1.30 0.236 1.18 SHM6X1X25 L-W5 TGFL19-6 5, 6 0.750 0.75 5.00 0.65 1.46 0.236 2.36 SHM6X1X20 L-W5 TGFR19-4 2, 3, 4 0.750 0.75 5.00 0.69 1.30 0.236 1.18 SHM6X1X20 L-W5 TGFR25.4-4 2, 3, 4 1.000 1 6.00 0.94 1.30 0.236 1.18 SHM6X1X25 L-W5 TGFR25.4-6 5, 6 1.000 1 6.00 0.90 1.46 0.236 2.36 SHM6X1X25 L-W5 Use inserts TDC/TSC*, TDJ/TSJ*, TDXU, TDT, TDFT, see pages 1274 - 1288. *Grooving only TGFPR/L EXTERNAL HOLDERS FOR SHALLOW FACE PERPENDICULAR GROOVING AND FACE TURNING Face Turning Face Groove B D T L T E H H *Right hand shown Designation InsertSeatSizeH(inch) B(inch) L(inch) F(inch) E(inch) Tmax(inch) Dmin(inch) Screw Wrench TGFPL25.4-4 2, 3, 4 1.000 1 6.00 - 0.72 0.189 1.18 SHM6X1X25 L-W5 TGFPL31.8-4 2, 3, 4 1.250 1.25 6.00 - 0.72 0.189 1.18 SHM6X1X25 L-W5 TGFPR31.8-4 2, 3, 4 1.250 1.25 6.00 - 0.72 0.189 1.18 SHM6X1X25 L-W5 TGFPR25.4-6 5, 6 1.000 1 6.00 - 0.87 0.189 2.36 SHM6X1X25 L-W5 Use inserts TDC/TSC*, TDJ/TSJ*, TDXU, TDT, TDFT, see pages 1274 - 1288. *Grooving only 1322
