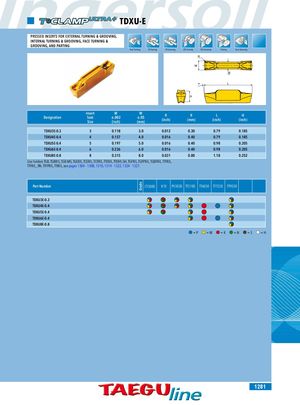

Grade TDXU-E PRESSED INSERTS FOR EXTERNAL TURNING & GROOVING, INTERNAL TURNING & GROOVING, FACE TURNING & GROOVING, AND PARTING Face Turning ID Turning ID Grooving OD Turning OD Grooving Parting Face Grooving R W B 7° L H Designation InsertSeatSize W W±.002±.05(inch)(mm) R(inch) R(mm) L(inch) H(inch) TDXU3E-0.3 3 0.118 3.0 0.012 0.30 0.79 0.185 TDXU4E-0.4 4 0.157 4.0 0.016 0.40 0.79 0.185 TDXU5E-0.4 5 0.197 5.0 0.016 0.40 0.98 0.205 TDXU6E-0.4 6 0.236 6.0 0.016 0.40 0.98 0.205 TDXU8E-0.8 8 0.315 8.0 0.031 0.80 1.18 0.252 Use holders TGB, TGBR/L, TGB-MS, TGER/L, TCER/L, TCFR/L, TTER/L, TTER/L-SH, TGFR/L, TGFPR/L, TGBFR/L, TTFR/L, TTFR/L_RN, TTFPR/L, TTIR/L, see pages 1304 - 1308, 1310, 1314 - 1322, 1324 - 1327. Part Number CT3000 K10 PV3030 TT5100 TT6030 TT7220 TT9030 TDXU3E-0.3 TDXU4E-0.4 TDXU5E-0.4 TDXU6E-0.4 TDXU8E-0.8 = P = M = K = N = S =H 112281
