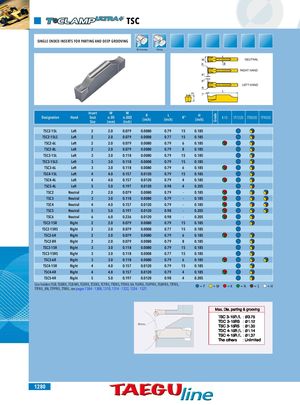

Grade TSC SINGLE ENDED INSERTS FOR PARTING AND DEEP GROOVING OD Grooving Parting W NEUTRAL R B RIGHT HAND K° K° LEFT HAND R L H 7° Designation Insert W WHandSeat±.05±.002Size(mm)(inch)R(inch) L(inch) K° H(inch) K10 TT7220 TT8020 TT9030 TSC2-15L Left 2 2.0 0.079 0.0080 0.79 15 0.185 TSC2-15LS Left 2 2.0 0.079 0.0008 0.77 15 0.185 TSC2-6L Left 2 2.0 0.079 0.0080 0.79 6 0.185 TSC2-8L Left 2 2.0 0.079 0.0080 0.79 8 0.185 TSC3-15L Left 3 3.0 0.118 0.0080 0.79 15 0.185 TSC3-15LS Left 3 3.0 0.118 0.0008 0.79 15 0.185 TSC3-6L Left 3 3.0 0.118 0.0080 0.79 6 0.185 TSC4-15L Left 4 4.0 0.157 0.0120 0.79 15 0.185 TSC4-4L Left 4 4.0 0.157 0.0120 0.79 4 0.185 TSC5-4L Left 5 5.0 0.197 0.0120 0.98 4 0.205 TSC2 Neutral 2 2.0 0.079 0.0080 0.79 - 0.185 TSC3 Neutral 3 3.0 0.118 0.0080 0.79 - 0.185 TSC4 Neutral 4 4.0 0.157 0.0120 0.79 - 0.185 TSC5 Neutral 5 5.0 0.197 0.0120 0.98 - 0.205 TSC6 Neutral 6 6.0 0.236 0.0120 0.98 - 0.205 TSC2-15R Right 2 2.0 0.079 0.0080 0.79 15 0.185 TSC2-15RS Right 2 2.0 0.079 0.0008 0.77 15 0.185 TSC2-6R Right 2 2.0 0.079 0.0080 0.79 6 0.185 TSC2-8R Right 2 2.0 0.079 0.0080 0.79 8 0.185 TSC3-15R Right 3 3.0 0.118 0.0080 0.79 15 0.185 TSC3-15RS Right 3 3.0 0.118 0.0008 0.77 15 0.185 TSC3-6R Right 3 3.0 0.118 0.0080 0.79 6 0.185 TSC4-15R Right 4 4.0 0.157 0.0120 0.79 15 0.185 TSC4-4R Right 4 4.0 0.157 0.0120 0.79 4 0.185 TSC5-4R Right 5 5.0 0.197 0.0120 0.98 4 0.205 Use holders TGB, TGBR/L, TGB-MS, TGER/L, TCER/L, TCFR/L, TTER/L, TTER/L-SH, TGFR/L, TGFPR/L, TGBFR/L, TTFR/L,TTFR/L_RN, TTFPR/L, TTIR/L, see pages 1304 - 1308, 1310, 1314 - 1322, 1324 - 1327.= P = M = K = N = S =H 1280
