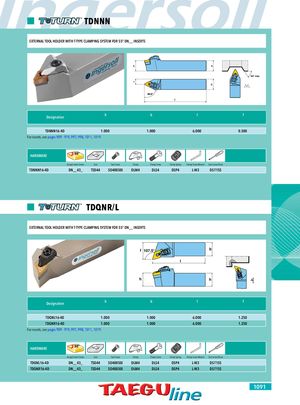

TDNNN EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR 55° DN__ INSERTS 60° max Designation h b l f TDNNN16-4D 1.000 1.000 6.000 0.500 For inserts, see pages 909 - 919, 997, 998, 1011, 1019. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Spring Clamp Screw Wrench Seat Screw Driver TDNNN16-4D DN__43_ TSD44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TDQNR/L EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR 55° DN__ INSERTS f 107.5° b l h h Designation h b l f TDQNL16-4D 1.000 1.000 6.000 1.250 TDQNR16-4D 1.000 1.000 6.000 1.250 For inserts, see pages 909 - 919, 997, 998, 1011, 1019. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Spring Clamp Screw Wrench Seat Screw Driver TDQNL16-4D DN__43_ TSD44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TDQNR16-4D DN__43_ TSD44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S 1091
