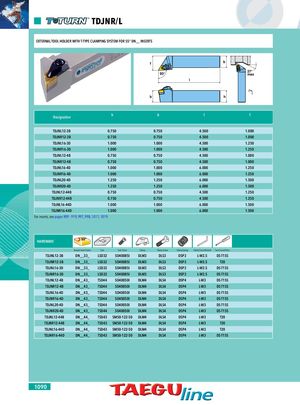

TDJNR/L EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR 55° DN__ INSERTS f b 27° 93° max l b h Designation h b l f TDJNL12-3B 0.750 0.750 4.500 1.000 TDJNR12-3B 0.750 0.750 4.500 1.000 TDJNL16-3D 1.000 1.000 4.500 1.250 TDJNR16-3D 1.000 1.000 4.500 1.250 TDJNL12-4B 0.750 0.750 4.500 1.000 TDJNR12-4B 0.750 0.750 4.500 1.000 TDJNL16-4D 1.000 1.000 6.000 1.250 TDJNR16-4D 1.000 1.000 6.000 1.250 TDJNL20-4D 1.250 1.250 6.000 1.500 TDJNR20-4D 1.250 1.250 6.000 1.500 TDJNL12-44B 0.750 0.750 4.500 1.250 TDJNR12-44B 0.750 0.750 4.500 1.250 TDJNL16-44D 1.000 1.000 6.000 1.500 TDJNR16-44D 1.000 1.000 6.000 1.500 For inserts, see pages 909 - 919, 997, 998, 1011, 1019. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Spring Clamp Screw Wrench Seat Screw Driver TDJNL12-3B DN__33_ LSD32 SO40085I DLM3 DLS3 DSP3 L-W2.5 DS-T15S TDJNR12-3B DN__33_ LSD32 SO40085I DLM3 DLS3 DSP3 L-W2.5 T20 TDJNL16-3D DN__33_ LSD32 SO40085I DLM3 DLS3 DSP3 L-W2.5 DS-T15S TDJNR16-3D DN__33_ LSD32 SO40085I DLM3 DLS3 DSP3 L-W2.5 DS-T15S TDJNL12-4B DN__43_ TSD44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TDJNR12-4B DN__43_ TSD44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TDJNL16-4D DN__43_ TSD44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TDJNR16-4D DN__43_ TSD44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TDJNL20-4D DN__43_ TSD44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TDJNR20-4D DN__43_ TSD44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TDJNL12-44B DN__44_ TSD43 SM50-122-50 DLM4 DLS4 DSP4 L-W3 T20 TDJNR12-44B DN__44_ TSD43 SM50-122-50 DLM4 DLS4 DSP4 L-W3 T20 TDJNL16-44D DN__44_ TSD43 SM50-122-50 DLM4 DLS4 DSP4 L-W3 T20 TDJNR16-44D DN__44_ TSD43 SM50-122-50 DLM4 DLS4 DSP4 L-W3 DS-T15S 1090
