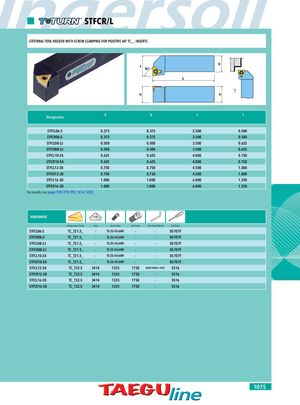

STFCR/L EXTERNAL TOOL HOLDER WITH SCREW CLAMPING FOR POSITIVE 60° TC__ INSERTS b f 91° L h h Designation h b l f STFCL06-2 0.375 0.375 2.500 0.500 STFCR06-2 0.375 0.375 2.500 0.500 STFCL08-2J 0.500 0.500 3.500 0.625 STFCR08-2J 0.500 0.500 3.500 0.625 STFCL10-2A 0.625 0.625 4.000 0.750 STFCR10-2A 0.625 0.625 4.000 0.750 STFCL12-3B 0.750 0.750 4.500 1.000 STFCR12-3B 0.750 0.750 4.500 1.000 STFCL16-3D 1.000 1.000 6.000 1.250 STFCR16-3D 1.000 1.000 6.000 1.250 For inserts, see pages 978, 979, 993, 1014, 1020. HARDWARE Accepts Insert Series Seat Insert Screw Seat Screw Seat Screw Wrench Torx Driver STFCL06-2 TC_T21.5_ - TS-25.45-6M1 - - DS-T07F STFCR06-2 TC_T21.5_ - TS-25.45-6M1 - - DS-T07F STFCL08-2J TC_T21.5_ - TS-25.45-6M1 - - DS-T07F STFCR08-2J TC_T21.5_ - TS-25.45-6M1 - - DS-T07F STFCL10-2A TC_T21.5_ - TS-25.45-6M1 - - DS-T07F STFCR10-2A TC_T21.5_ - TS-25.45-6M1 - - DS-T07F STFCL12-3B TC_T32.5 3414 1335 1750 AG00140LLA 9/64" 5516 STFCR12-3B TC_T32.5 3414 1335 1750 - 5516 STFCL16-3D TC_T32.5 3414 1335 1750 - 5516 STFCR16-3D TC_T32.5 3414 1335 1750 - 5516 1075
