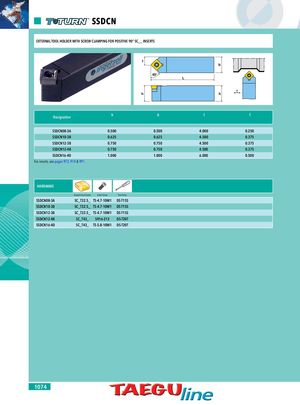

SSDCN EXTERNAL TOOL HOLDER WITH SCREW CLAMPING FOR POSITIVE 90° SC__ INSERTS f b 45° L h h Designation h b l f SSDCN08-3A 0.500 0.500 4.000 0.250 SSDCN10-3B 0.625 0.625 4.500 0.375 SSDCN12-3B 0.750 0.750 4.500 0.375 SSDCN12-4B 0.750 0.750 4.500 0.375 SSDCN16-4D 1.000 1.000 6.000 0.500 For inserts, see pages 973, 974 & 991. HARDWARE Accepts Insert Series Insert Screw Torx Driver SSDCN08-3A SC_T32.5_ TS-4.7-10M1 DS-T15S SSDCN10-3B SC_T32.5_ TS-4.7-10M1 DS-T15S SSDCN12-3B SC_T32.5_ TS-4.7-10M1 DS-T15S SSDCN12-4B SC_T43_ SR16-212 DS-T20T SSDCN16-4D SC_T43_ TS-5.8-10M1 DS-T20T 1074
