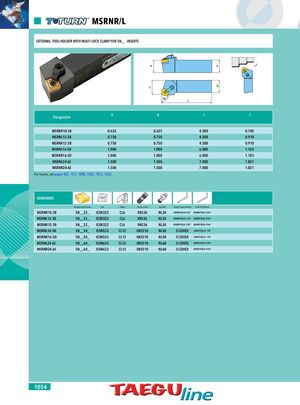

MSRNR/L EXTERNAL TOOL HOLDER WITH MULTI LOCK CLAMP FOR SN__ INSERTS Designation h b l f MSRNR10-3B 0.625 0.625 4.500 0.785 MSRNL12-3B 0.750 0.750 4.500 0.910 MSRNR12-3B 0.750 0.750 4.500 0.910 MSRNL16-5D 1.000 1.000 6.000 1.103 MSRNR16-5D 1.000 1.000 6.000 1.103 MSRNL24-6E 1.500 1.500 7.000 1.821 MSRNR24-6E 1.500 1.500 7.000 1.821 For inserts, see pages 922 - 931, 1000, 1002, 1013, 1020. HARDWARE Accepts Insert Series Seat Clamp Clamp Screw Lock Pin Clamp Screw Wrench Lock Pin Wrench MSRNR10-3B SN__32_ ISSN322 CL6 XNS36 NL34 AG00093LLA 3/32" AG00078LLA 5/64" MSRNL12-3B SN__32_ ISSN322 CL6 XNS36 NL34 AG00093LLA 3/32" AG00078LLA 5/64" MSRNR12-3B SN__32_ ISSN322 CL6 XNS36 NL34 AG00093LLA 3/32" AG00078LLA 5/64" MSRNL16-5D SN__54_ ISSN533 CL12 XNS510 NL58 5/32HEX AG00125LLA 1/8" MSRNR16-5D SN__54_ ISSN533 CL12 XNS510 NL58 5/32HEX AG00125LLA 1/8" MSRNL24-6E SN__64_ ISSN633 CL12 XNS510 NL68 5/32HEX AG00140LLA 9/64" MSRNR24-6E SN__64_ ISSN633 CL12 XNS510 NL68 5/32HEX AG00140LLA 9/64" 1054
