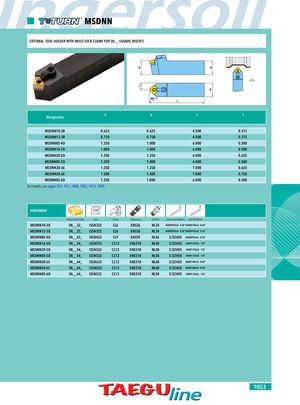

MSDNN EXTERNAL TOOL HOLDER WITH MULTI LOCK CLAMP FOR SN__ SQUARE INSERTS h h f b 45° l Designation h b l f MSDNN10-3B 0.625 0.625 4.500 0.313 MSDNN12-3B 0.750 0.750 4.500 0.375 MSDNN85-4D 1.250 1.000 6.000 0.500 MSDNN16-5D 1.000 1.000 6.000 0.500 MSDNN20-5D 1.250 1.250 6.000 0.625 MSDNN85-5D 1.250 1.000 6.000 0.500 MSDNN20-6E 1.250 1.250 7.000 0.625 MSDNN24-6E 1.500 1.500 7.000 0.750 MSDNN85-6D 1.250 1.000 6.000 0.500 For inserts, see pages 922 - 931, 1000, 1002, 1013, 1020. HARDWARE Accepts Insert Series Seat Clamp Clamp Screw Lock Pin Clamp Screw Wrench Lock Pin Wrench MSDNN10-3B SN__32_ ISSN322 CL6 XNS36 NL34 AG00093LLA 3/32"AG00078LLA 5/64" MSDNN12-3B SN__32_ ISSN322 CL6 XNS36 NL34 AG00093LLA 3/32"AG00093LLA 3/32" MSDNN85-4D SN__43_ ISSN433 CL9 XNS59 NL46 5/32HEX AG00093LLA 3/32" MSDNN16-5D SN__54_ ISSN533 CL12 XNS510 NL58 5/32HEX AG00125LLA 1/8" MSDNN20-5D SN__54_ ISSN533 CL12 XNS510 NL58 5/32HEX AG00125LLA 1/8" MSDNN85-5D SN__54_ ISSN533 CL12 XNS510 NL58 5/32HEX AG00125LLA 1/8" MSDNN20-6E SN__64_ ISSN633 CL12 XNS510 NL68 5/32HEX AG00140LLA 9/64" MSDNN24-6E SN__64_ ISSN633 CL12 XNS510 NL68 5/32HEX AG00140LLA 9/64" MSDNN85-6D SN__64_ ISSN533 CL12 XNS510 NL58 5/32HEX AG00125LLA 1/8" 1053
