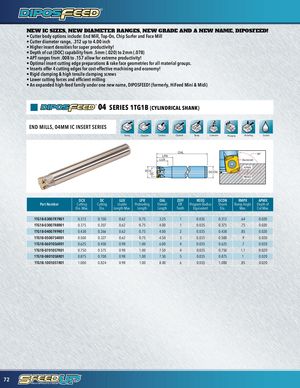

NEW IC SIZES, NEW DIAMETER RANGES, NEW GRADE AND A NEW NAME, DIPOSFEED! • Cutter body options include: End Mill, Top-On, Chip Surfer and Face Mill • Cutter diameter range, .312 up to 4.00 inch • Higher insert densities for super productivity! • Depth of cut (DOC) capability from .5mm (.020) to 2mm (.078) • APT ranges from .008 to .157 allow for extreme productivity! • Optimal insert cutting edge preparations & rake face geometries for all material groups. • Inserts offer 4 cutting edges for cost-effective machining and economy! • Rigid clamping & high tensile clamping screws • Lower cutting forces and efficient milling • An expanded high-feed family under one new name, DIPOSFEED! (formerly, HiFeed Mini & Midi) 04 SERIES 1TG1B (CYLINDRICAL SHANK) END MILLS, 04MM IC INSERT SERIES Facing Shoulder Contour Channel Ramp Corkscrew Plunging Pocketing Coolant OALLPR 90° LUX Backdraft APMX DCX DC DCON REEQ DCX DC LUX LPR OAL ZEFF REEQ DCON RMPX APMX Part Number Cutting Cutting Usable Protruding Overall Eff. Program Radius Shank Ramp Angle Depth of Dia. Max. Dia. Length Max. Length Length Teeth Equivalent Dia. Max. Cut Max. 1TG1B-03007R7R01 0.312 0.150 0.62 0.75 3.25 1 0.035 0.312 .64 0.020 1TG1B-03007R8R01 0.375 0.207 0.62 0.75 4.00 1 0.035 0.375 .75 0.020 1TG1B-04007R9R01 0.438 0.266 0.62 0.75 4.00 2 0.035 0.438 .85 0.020 1TG1B-05007S4R01 0.500 0.327 0.62 0.75 4.50 3 0.035 0.500 .9 0.020 1TG1B-06010S6R01 0.625 0.450 0.98 1.00 6.00 4 0.035 0.625 .7 0.020 1TG1B-07010S7R01 0.750 0.575 0.98 1.00 7.50 4 0.035 0.750 1.1 0.020 1TG1B-08010S8R01 0.875 0.700 0.98 1.00 7.50 5 0.035 0.875 1 0.020 1TG1B-10010S1R01 1.000 0.824 0.98 1.00 8.00 6 0.035 1.000 .85 0.020 72
