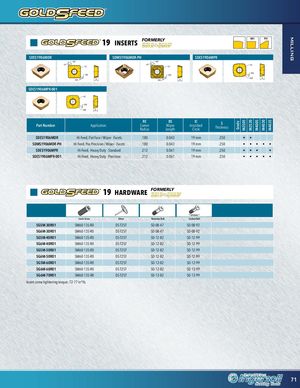

Каталог Ingersoll новинки 2021 - страница 71

milling Grade IN2505 IN2530 IN4005 IN4030 IN4035 19 INSERTS FORMERLY 001 PH SDES1906MDR SDMS1906MDR-PH SDES1906MPR 60° 60° 12° 12°IC IC IC BS BSBS BS S BS S RE S SDES1906MPR-001 IC BS RE S Part Number Application RECornerRadius BSWiperLength ICInscribedCircle SThickness SDES1906MDR Hi-Feed, Flat Face / Wiper - Facets .180 0.043 19 mm .250 • • SDMS1906MDR-PH Hi-Feed, Pos Precision / Wiper - Facets .180 0.043 19 mm .250 • • • • • SDES1906MPR Hi-Feed, Heavy Duty - Standard .212 0.061 19 mm .250 • • • • SDES1906MPR-001 Hi-Feed, Heavy Duty - Precision .212 0.061 19 mm .250 • • • • • 19 HARDWARE FORMERLY **OPTIONAL** Insert Screw Driver Retention Bolt Coolant Bolt 5G5M-30R01 SM60-135-R0 DS-T25T SD-08-47 SD-08-92 5G6M-30R01 SM60-135-R0 DS-T25T SD-08-47 SD-08-92 5G5M-40R01 SM60-135-R0 DS-T25T SD-12-82 SD-12-99 5G6M-40R01 SM60-135-R0 DS-T25T SD-12-82 SD-12-99 5G5M-50R01 SM60-135-R0 DS-T25T SD-12-82 SD-12-99 5G6M-50R01 SM60-135-R0 DS-T25T SD-12-82 SD-12-99 5G5M-60R01 SM60-135-R0 DS-T25T SD-12-82 SD-12-99 5G6M-60R01 SM60-135-R0 DS-T25T SD-12-82 SD-12-99 5G6M-70R01 SM60-135-R0 DS-T25T SD-12-82 SD-12-99 Insert screw tightening torque: 72-77 in*lb. 71
