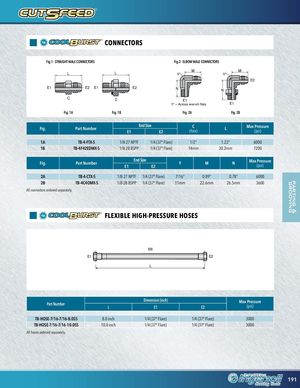

pgarrotoinvging& Fig. 1a Fig. 1b Fig. 2a Fig. 2b L L M MY*Y* E2 E1 E2 E1 E2CONNECTORS N N C C E1Y* – Across wrench flats E1 FFigi.g1 -.ST1RaAIGHT MALE CONNECTORSFig. 1b Fig.2 - ELBOW MALE CONNECTORSFig. 2aFig. 2b L L M MY*Y* E2 E1 E2 E1 E2 N N C C E1Y* – Across wrench flats E1 Fig. 1A Fig. 1B Fig. 2A Fig. 2B Fig. Part Number End Size CE1E2(hex) L Max Pressure(psi) 1A TB-4-FTX-S 1/8-27 NPTF 1/4 (37º Flare) 1/2" 1.22" 6000 1B TB-4F42EDMX-S 1/8-28 BSPP 1/4 (37º Flare) 14mm 30.2mm 7200 Fig. Part Number End SizeE1 E2 Y M N Max Pressure(psi) 2A TB-4-CTX-S 1/8-27 NPTF 1/4 (37º Flare) 7/16" 0.89" 0.78" 6000 2B TB-4C4OMX-S 1/8-28 BSPP 1/4 (37º Flare) 11mm 22.6mm 26.5mm 3600 All connectors ordered separately. FLEXIBLE HIGH-PRESSURE HOSES SSSS E1 E1 E2 E2 L Part Number Dimension (inch) Max PressureLE1E2(psi) TB-HOSE-7/16-7/16-8.0SS 8.0 inch 1/4 (37º Flare) 1/4 (37º Flare) 3000 TB-HOSE-7/16-7/16-10.0SS 10.0 inch 1/4 (37º Flare) 1/4 (37º Flare) 3000 All hoses ordered separately. 191
