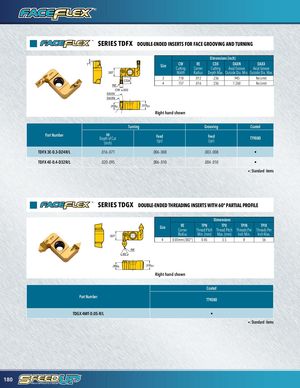

SERIES TDFX DOUBLE-ENDED INSERTS FOR FACE GROOVING AND TURNING Dimensions (inch) 7˚ Size CW RE CDX DAXN DAXXCuttingCornerCuttingAxial GrooveAxial Groove .307 Width Radius Depth Max. Outside Dia. Min. Outside Dia. Max. 3 .118 .012 .236 .945 No Limit CDXRE 4 .157 .016 .236 1.260 No Limit CW ±.002 DAXX DAXN .256S .315S1 Right hand shown Turning Grooving Coated Part Number apDepth of Cut(inch) Feed(ipr) Feed(ipr) TT9080 TDFX 3E-0.3-D24R/L .016-.071 .006-.008 .003-.008 • TDFX 4E-0.4-D32R/L .020-.095 .006-.010 .004-.010 • •: Standard items SERIES TDGX DOUBLE-ENDED THREADING INSERTS WITH 60º PARTIAL PROFILE Dimensions Size RE TPN TPX TPIN TPIXCornerThread PitchThread PitchThreads PerThreads Per .307 Radius Min. (mm) Max. (mm) Inch Min. Inch Max. 4 0.05mm (.002") 0.45 3.5 8 56 RE 60˚ .256S .315S1 Right hand shown Coated Part Number TT9080 TDGX 4MT-0.05-R/L • •: Standard items 180
