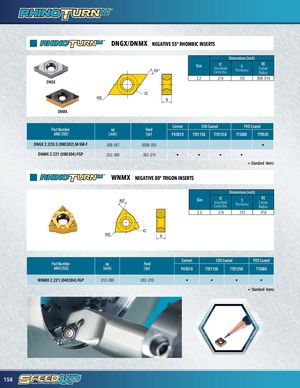

DNGX/DNMX NEGATIVE 55º RHOMBIC INSERTS Dimensions (inch) 55° Size ICInscribedCircle Dia.SThicknessRECornerRadius 2.2 .276 .125 .008-.016 DNGX IC RE S DNMX Part Number ap Feed Cermet CVD Coated PVD Coated ANSI (ISO) (inch) (ipr) PV3010 TT8115B TT8125B TT5080 TT9020 DNGX 2.220.5 (080302) M-SM-F .008-.047 .0008-.005 • DNMX 2.221 (080304) FGP .012-.080 .002-.010 • • • • •: Standard items WNMX NEGATIVE 80º TRIGON INSERTS Dimensions (inch) 80° Size ICInscribedCircle Dia.SThicknessRECornerRadius 2.2 .276 .125 .016 IC RE S Cermet CVD Coated PVD Coated Part Number ap Feed ANSI (ISO) (inch) (ipr) PV3010 TT8115B TT8125B TT5080 WNMX 2.221 (040304) FGP .012-.080 .002-.010 • • • • •: Standard items 158
