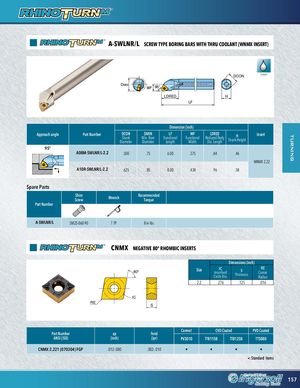

turning A-SWLNR/L SCREW TYPE BORING BARS WITH THRU COOLANT (WNMX INSERT) DCON DCON Coolant WF 95° DMIN WF 95° LDRED H LF LDRED H LF Dimension (inch) Approach angle Part Number DCONShankDiameterDMINMin. BoreDiameterLFFunctionalLengthWFFunctionalWidthLDREDReduced BodyDia. LengthHShank HeightInsert 95° A08M-SWLNR/L-2.2 .500 .75 6.00 .375 .84 .46 WNMX 2.22 A10R-SWLNR/L-2.2 .625 .85 8.00 .438 .96 .58 Spare Parts ShimScrew Wrench RecommendedTorque Part Number A-SWLNR/L SM25-060-90 T 7P 8 in-lbs CNMX NEGATIVE 80º RHOMBIC INSERTS Dimensions (inch) 80° Size ICInscribedCircle Dia.SThicknessRECornerRadius 2.2 .276 .125 .016 IC RE S Cermet CVD Coated PVD Coated Part Number ap Feed ANSI (ISO) (inch) (ipr) PV3010 TT8115B TT8125B TT5080 CNMX 2.221 (070304) FGP .012-.080 .002-.010 • • • • •: Standard items 157
