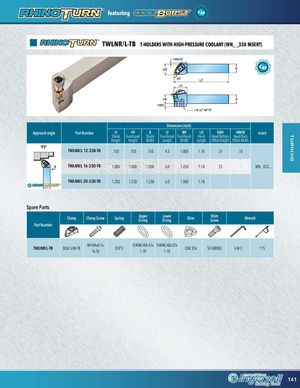

turning featuring TWLNR/L-TB T-HOLDERS WITH HIGH-PRESSURE COOLANT (WN_ _33X INSERT) HBKW WF B 95° LF LH HF H HBH 1/8-27 NPTF Dimension (inch) Approach angle Part Number H HF B LF WF LH HBH HBKW Insert Shank Functional Shank Functional Functional Head Head Bottom Head Back Height Height Width Length Width Length Offset Height Offset Width 95° TWLNR/L 12-33B-TB .750 .750 .750 4.5 1.000 1.18 .31 .10 B TWLNR/L 16-33D-TB 1.000 1.000 1.000 6.0 1.250 1.18 .25 - WN... X33... TWLNR/L 20-33D-TB 1.250 1.250 1.250 6.0 1.500 1.18 - - H F Spare Parts Clamp Clamp Screw Spring UpperO-ring LowerO-ring Shim ShimScrew Wrench Part Number TWLNR/L-TB DLM 3-NX-TB BH M4x0.7x16-TB DSP 3 O-RING ID4.47x O-RING ID6.07x1.781.78LSW 32A SO 40085I L-W 3 T 15 141
