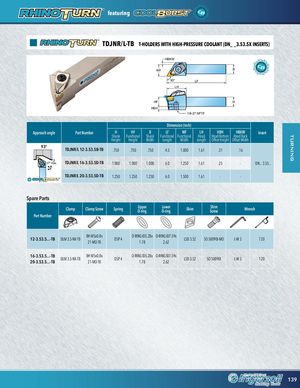

turning featuring TDJNR/L-TB T-HOLDERS WITH HIGH-PRESSURE COOLANT (DN_ _3.53.5X INSERTS) HBKW WF B 27° max. 93° LF LH HF H HBH 1/8-27 NPTF Dimension (inch) Approach angle Part Number H HF B LF WF LH HBH HBKW Insert Shank Functional Shank Functional Functional Head Head Bottom Head Back Height Height Width Length Width Length Offset Height Offset Width 93° TDJNR/L 12-3.53.5B-TB .750 .750 .750 4.5 1.000 1.61 .31 .16 B 27° max. TDJNR/L 16-3.53.5D-TB 1.000 1.000 1.000 6.0 1.250 1.61 .25 - DN... 3.53... TDJNR/L 20-3.53.5D-TB 1.250 1.250 1.250 6.0 1.500 1.61 - - H Spare Parts Clamp Clamp Screw Spring UpperO-ring LowerO-ring Shim ShimScrew Wrench Part Number BH M5x0.8x O-RING ID5.28x O-RING ID7.59x 12-3.53.5...-TB DLM 3.5-NX-TB DSP 4 LSD 3.52 SO 50090I-MO L-W 3 T 20 21-MO-TB 1.78 2.62 16-3.53.5...-TB20-3.53.5...-TBDLM 3.5-NX-TBBH M5x0.8x21-MO-TBDSP 4O-RING ID5.28xO-RING ID7.59x1.782.62LSD 3.52 SO 50090I L-W 3 T 20 139
