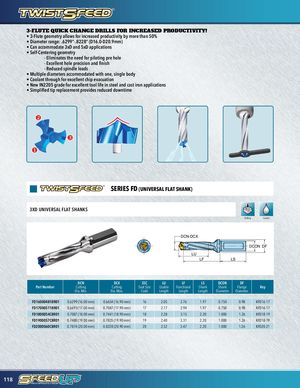

3-FLUTE QUICK CHANGE DRILLS FOR INCREASED PRODUCTIVITY! • 3-Flute geometry allows for increased productivity by more than 50% • Diameter range: .6299”-.8228” (D16.0-D20.9mm) • Can accommodate 3xD and 5xD applications • Self-Centering geometry - Eliminates the need for piloting pre hole - Excellent hole precision and finish - Reduced spindle loads • Multiple diameters accommodated with one, single body • Coolant through for excellent chip evacuation • New IN2205 grade for excellent tool life in steel and cast iron applications • Simplified tip replacement provides reduced downtime    SERIES FD (UNIVERSAL FLAT SHANK) 3XD UNIVERSAL FLAT SHANKS Drilling Coolant DCN-DCX DCON DF LU LF LS DCN DCX SSC LU LF LS DCON DF Part Number Cutting Cutting Seat Size Usable Functional Shank Shank Flange Key Dia. Min. Dia. Max. Code Length Length Length Diameter Diameter FD160004818R01 0.6299 (16.00 mm) 0.6654 (16.90 mm) 16 2.05 2.76 1.97 0.750 0.98 KFD16-17 FD170005118R01 0.6693 (17.00 mm) 0.7047 (17.90 mm) 17 2.17 2.94 1.97 0.750 0.98 KFD16-17 FD1800054C8R01 0.7087 (18.00 mm) 0.7441 (18.90 mm) 18 2.28 3.15 2.20 1.000 1.26 KFD18-19 FD1900057C8R01 0.7480 (19.00 mm) 0.7835 (19.90 mm) 19 2.40 3.31 2.20 1.000 1.26 KFD18-19 FD2000060C8R01 0.7874 (20.00 mm) 0.8228 (20.90 mm) 20 2.52 3.47 2.20 1.000 1.26 KFD20-21 118
