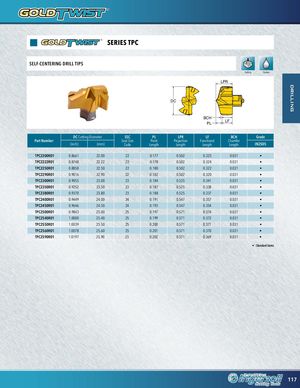

Каталог Ingersoll новинки 2021 - страница 117

drilling D(oivreecrt8dxSeDeE)pRhIoEleS mTaPcChining without the pilot hole SELF-CENTERING DRILL TIPS Drilling Coolant LPR DC BCHPL LF DC Cutting Diameter SSC PL LPR LF BCH Grade Part Number Seat Size Point Projection Functional Chamfer (inch) (mm) Code Length Length Length Length IN2505 TPC2200R01 0.8661 22.00 22 0.177 0.502 0.325 0.031 • TPC2222R01 0.8748 22.22 22 0.178 0.502 0.324 0.031 • TPC2250R01 0.8858 22.50 22 0.180 0.502 0.322 0.031 • TPC2290R01 0.9016 22.90 22 0.182 0.502 0.320 0.031 • TPC2300R01 0.9055 23.00 23 0.184 0.525 0.341 0.031 • TPC2350R01 0.9252 23.50 23 0.187 0.525 0.338 0.031 • TPC2380R01 0.9370 23.80 23 0.188 0.525 0.337 0.031 • TPC2400R01 0.9449 24.00 24 0.191 0.547 0.357 0.031 • TPC2450R01 0.9646 24.50 24 0.193 0.547 0.354 0.031 • TPC2500R01 0.9843 25.00 25 0.197 0.571 0.374 0.031 • TPC2540R01 1.0000 25.40 25 0.199 0.571 0.372 0.031 • TPC2550R01 1.0039 25.50 25 0.200 0.571 0.371 0.031 • TPC2560R01 1.0078 25.60 25 0.201 0.571 0.370 0.031 • TPC2590R01 1.0197 25.90 25 0.202 0.571 0.369 0.031 • • : Standard items 117
