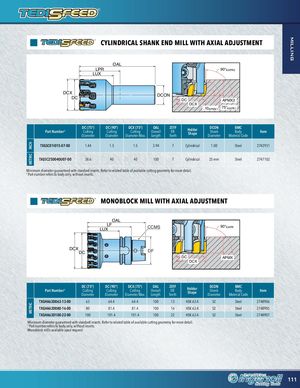

milling INCHMETRICMETRIC CYLINDRICAL SHANK END MILL WITH AXIAL ADJUSTMENT OAL LPR 90°KAPR2 LUX DCX DC DCON DC APMX2 DCX .10APMX1 75°KAPR1 Part Number1 DC (75º)CuttingDiameterDC (90º) DCX (75º) OAL ZEFFCuttingCuttingOverallEff.DiameterDiameter Max.LengthTeethHolderShapeDCONBMCShankBodyDiameterMaterial CodeItem TXGSC01I015-07-00 1.44 1.5 1.5 3.94 7 Cylindrical 1.00 Steel 2742931 TXGSC25D040U07-00 38.6 40 40 100 7 Cylindrical 25 mm Steel 2747102 Minimum diameter guaranteed with standard inserts. Refer to related table of available cutting geometry for more detail. 1 Part number refers to body only, without inserts. MONOBLOCK MILL WITH AXIAL ADJUSTMENT OAL LFLUX CCMS 90°KAPR DCX DC DF DC APMX DCX Part Number1 DC (75º)CuttingDiameterDC (90º) DCX (75º) OAL ZEFFCuttingCuttingOverallEff.DiameterDiameter Max.LengthTeethHolderShapeDCONBMCShankBodyDiameterMaterial CodeItem TXGHA63D063-13-00 63 64.4 64.4 100 13 HSK 63 A 52 Steel 2748906 TXGHA63D080-16-00 80 81.4 81.4 100 16 HSK 63 A 52 Steel 2748905 TXGHA63D100-22-00 100 101.4 101.4 100 22 HSK 63 A 52 Steel 2748907 Minimum diameter guaranteed with standard inserts. Refer to related table of available cutting geometry for more detail. 1 Part number refers to body only, without inserts. Monoblock mills available upon request. 111
