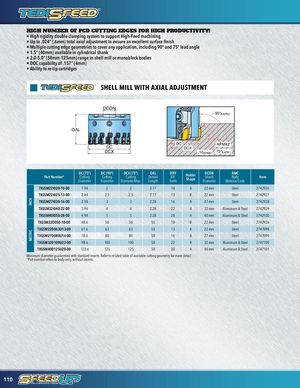

INCHMETRIC HIGH NUMBER OF PCD CUTTING EDGES FOR HIGH PRODUCTIVITY! • High rigidity double clamping system to support High-Feed machining • Up to .024” (.6mm) total axial adjustment to ensure an excellent surface finish • Multiple cutting edge geometries to cover any application, including 90° and 75° lead angle • 1.5” (40mm) available in cylindrical shank • 2.0-5.0” (50mm-125mm) range in shell mill or monoblock bodies • DOC capability of .157” (4mm) • Ability to re-tip cartridges SHELL MILL WITH AXIAL ADJUSTMENT DCON 90°KAPR2 OAL DC DC APMX2DCX DCX .10APMX1 75°KAPR1 Part Number1 DC (75º) DC (90º) DCX (75º) OALCuttingCuttingCuttingOverallDiameterDiameterDiameter Max.LengthZEFFEff.TeethHolderShapeDCONShankDiameterBMCBodyMaterial CodeItem TXGSM22I020-10-00 1.94 2 2 2.17 10 A 22 mm Steel 2742926 TXGSM22I025-13-00 2.44 2.5 2.5 2.17 13 B 22 mm Steel 2742927 TXGSM27I030-16-00 2.94 3 3 2.28 16 A 27 mm Steel 2742928 TXGSM32I040-22-00 3.94 4 4 2.28 22 A 32 mm Aluminum & Steel 2742929 TXGSM40I050-28-00 4.94 5 5 2.28 28 A 40 mm Aluminum & Steel 2742930 TXGSM22D050-10-00 48.6 50 50 55 10 B 22 mm Steel 2742926 TXGSM22D063U13-00 61.6 63 63 55 13 A 22 mm Steel 2747098 TXGSM27D080U16-00 78.6 80 80 58 16 A 27 mm Steel 2747099 TXGSM32D100U22-00 98.6 100 100 58 22 A 32 mm Aluminum & Steel 2747100 TXGSM40D125U28-00 123.6 125 125 58 28 A 40 mm Aluminum & Steel 2747101 Minimum diameter guaranteed with standard inserts. Refer to related table of available cutting geometry for more detail. 1 Part number refers to body only, without inserts. 110
