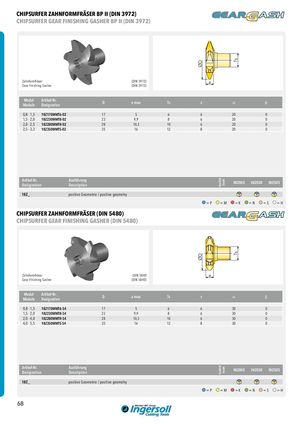

Каталог Ingersoll инструмент для нарезания резьбы - страница 68

ØDØD QualitätQualität GradeGrade TsTs CHIPSURFER ZAHNFORMFRÄSER BP II (DIN 3972) CHIPSURFER GEAR FINISHING GASHER BP II (DIN 3972) Zahnformfräser (DIN 3972) a Gear Finishing Gasher (DIN 3972) Modul Artikel-Nr.ModuleDesignation D a max Ts z a b 0,8 - 1,5 18Z170MMT6-02 17 5 6 6 20 0 1,5 - 2,0 18Z230MMT8-02 23 9,9 8 6 20 0 2,0 - 2,5 18Z280MMTR-02 28 10,3 10 6 20 0 2,5 - 3,3 18Z350MMTS-02 35 16 12 8 20 0 Artikel-Nr. AusführungDesignationDescription IN2005 IN2030 IN2505 18Z_ positive Geometrie / positive geometry =P =M =K =N =S =H CHIPSURFER ZAHNFORMFRÄSER (DIN 5480) CHIPSURFER GEAR FINISHING GASHER (DIN 5480) Zahnformfräser (DIN 5840 a Gear Finishing Gasher (DIN 5840) Modul Artikel-Nr.ModuleDesignation D a max Ts z a b 0,8 - 1,5 18Z170MMT6-54 17 5 6 6 30 0 1,5 - 2,0 18Z230MMT8-54 23 9,9 8 6 30 0 2,0 - 4,0 18Z280MMTR-54 28 10,3 10 6 30 0 4,0 - 5,5 18Z350MMTS-54 35 16 12 8 30 0 Artikel-Nr. AusführungDesignationDescription IN2005 IN2030 IN2505 18Z_ positive Geometrie / positive geometry =P =M =K =N =S =H 68
