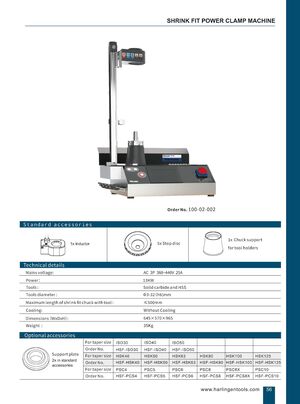

SHRINK FIT POWER CLAMP MACHINE . OrderNo 100 - 02 - 002 Standard accessories l x Chuck support 5 x Stop disc 1x Inductor fortool holders Technical details - Mains voltage: AC 3 P 360 440V 25A Power : 13 KW Tools : Solid carbide and HSS Tools diameter : 03 - 32 ( h 6 ) mm Maximum length of shrink fit chuck with tool : ^ 500 mm Cooling: Without Cooling Dimensions ( WxDxH ) : 645 X 570 X 965 Weight : 35 Kg Optional accessories Support plate 2 x in standard accessories Fortaper size ISO 30 ISO 40 ISO 50 Order No. HSF - ISO 30 HSF - ISO 40 HSF - ISO 50 Fortaper size HSK 40 HSK 50 HSK 63 HSK 80 Order No . HSF - HSK 40 HSF - HSK 50 HSF - HSK 63 HSF - HSK 80 HSF- HSK 100 HSF - HSK 125 HSK 100 HSK 125 Fortaper size PSC 4 PSC 5 PSC 6 PSC 8 PSC 8 X PSC 10 Order No . HSF - PCS 4 HSF - PCS 5 HSF - PCS 6 HSF - PCS 8 HSF- PCS 8 X HSF - PCS 10 www. harlingentools . com
