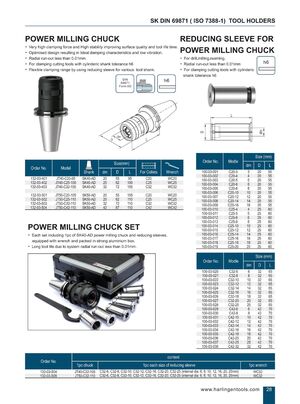

SK DIN 69871 ( ISO 7388-1) TOOL HOLDERS POWER MILLING CHUCK REDUCING SLEEVE FOR POWER MILLING CHUCK • Very high clamping force and High stability improving surface quality and tool life time. • Optimised design resulting in Ideal damping characteristics and low vibration. • Radial run-out less than 0.01mm. • For drill ,milling ,reaming. • For clamping cutting tools with cylinderic shank tolerance h6 • Radial run-out less than 0.01mm • Flexible clamping range by using reducing sleeve for various tool shank. • For clamping cutting tools with cylinderic shank tolerance h6 DIN 69871 Form AD h6 h6 V E - " O i Size (mm) Order No . Shank Wrench 132-03-401 132-03-402 132-03-403 JT40-C 20-95 JT40-C25 -100 JT40-C32-105 SK 40-AD SK40-AD SK 40-AD 25 32 62 72 100 105 C25 C32 WC 20 WC25 WC32 132-03 -501 132-03-502 132-03-503 132-03-504 JT50-C20-105 JT50-C25-110 JT50-C32-110 JT50-C42-110 SK50-AD SK50-AD SK50-AD SK50-AD 20 25 32 42 55 62 72 87 105 110 110 110 C20 C25 C32 C42 WC20 WC25 WC32 WC42 C20 POWER MILLING CHUCK SET • Each set including 1pc of SK40-AD power milling chuck and reducing sleeves equipped with wrench and packed in strong aluminium box. • Long tool life due to system radial run- out less than 0.01mm. Order No. Modle 100-03-001 100-03-002 100- 03-003 100-03-004 100- 03-005 100-03-006 100-03-007 100- 03-008 100- 03-009 100-03-010 100-03-011 100-03-012 100-03-013 100-03-014 100-03-015 100-03-016 100- 03-017 100- 03-018 100- 03-019 C 20-3 C 20-4 C 20-5 C 20-6 C 20-8 C20-10 C20-12 C20-14 C20-16 C 25-4 C25-5 C 25-6 C 25-8 C25-10 C25-12 C25-14 C25-16 C25-18 C25-20 Order No. Modle 100-03-020 100-03-021 100-03-022 100-03-023 100-03-024 100-03-025 100-03-026 100-03-027 100-03-028 100-03-029 100-03-030 100-03-031 100-03-032 100-03-033 100-03-034 100-03-035 100-03-036 100-03-037 100-03-038 C32-6 C32-8 C32-10 C32-12 C32-14 C32-16 C32-18 C32-20 C32-25 C42-6 C42-8 C42-10 C42-12 C42-14 C42-16 C42-18 C42-20 C42-25 C42- 32 Size (mm) Order No. 132-03-S04 132-03-S05 content 1pc chuck 1pc each size of reducing sleeve 1pc wrench JT40-C32-105 JT50-C32-110 C32-6, C32-8, C32-10, C32-12, C32-16 , C32-20 , C32-25 (internal dia : 6, 8 , 10, 12, 16, 20 , 25mm) C32-6, C32-8, C32-10, C32-12, C32-16 , C32-20 , C32-25 (internal dia : 6, 8 , 10, 12, 16, 20 , 25mm) WC32 WC32 www. harlingentools . com
