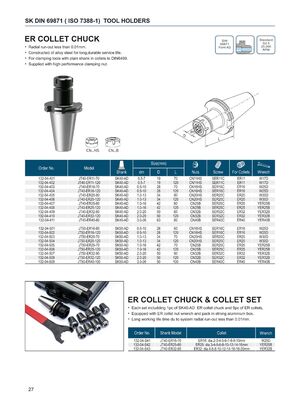

SK DIN 69871 ( ISO 7388-1) TOOL HOLDERS ER COLLET CHUCK Standard G 2.5 25 , 000 RPM DIN 69871 Form AD • Radial run-out less than 0.01mm . • Constructed of alloy steel for long,durable service life. • For clamping tools with plain shank in collets to DIN 6499. • Supplied with high performance clamping nut. / dm D Order No. Model 132-04-401 132-04-402 132-04-403 132-04-404 132-04-405 132-04-406 132-04-407 132-04-408 132-04-409 132-04-410 132-04-411 JT40-ER 11-70 JT40-ER11-120 JT40-ER16-70 JT40-ER16-120 JT40-ER20-80 JT40-ER20-120 JT40-ER25-80 JT40-ER25-120 JT40-ER32-60 JT40-ER 32-120 JT40-ER40-80 SK 40-AD SK40-AD SK40-AD SK40-AD SK40-AD SK40-AD SK40-AD SK40-AD SK40-AD SK40-AD SK40-AD 0.5 -7 0.5-7 0.5-10 0.5-10 1.0-13 1.0-13 1.0-16 1.0-16 2.0-20 2.0-20 3.0-26 19 19 28 28 34 34 42 42 50 50 63 70 120 70 120 80 120 80 120 60 120 80 CN11HS CN11HS CN16HS CN16HS CN20HS CN20HS CN25 B CN25 B CN32B CN32B CN40B SER 11 C SER 11 C SER16C SER16C SER20C SER20C SER25C SER25C SER32C SER32C SER40C ER 11 ER11 ER16 ER16 ER20 ER20 ER25 ER25 ER32 ER32 ER40 W17D W17D W25D W25D W30D W30D YER25B YER25 B YER32B YER32B YER40B 132-04-501 132-04-502 132-04-503 132-04-504 132-04-505 132-04-506 132-04-507 132-04-508 132-04-509 JT50-ER16-60 JT50-ER16-120 JT50-ER20-70 JT50-ER20-120 JT50-ER25-70 JT50-ER25-120 JT50-ER32-90 JT50-ER 32-120 JT50-ER 40-100 SK50-AD SK50-AD SK 50-AD SK50-AD SK 50-AD SK50-AD SK 50-AD SK50-AD SK 50-AD 0.5-10 0.5-10 1.0-13 1.0-13 1.0-16 1.0-16 2.0-20 2.0-20 3.0-26 28 28 34 34 42 42 50 50 50 60 120 70 120 70 120 90 120 100 CN16HS CN16HS CN20HS CN20HS CN25 B CN25 B CN32B CN32B CN40B SER16C SER16C SER20C SER20C SER25C SER25C SER32C SER32C SER 40C ER16 ER16 ER20 ER20 ER 25 ER25 ER32 ER32 ER40 W25D W25D W30D W30D YER25 B YER25B YER32B YER32B YER40B ER COLLET CHUCK & COLLET SET • Each set includding 1pc of SK 40-AD ER collet chuck and 9pc of ER collets , • Equipped with ER collet nut wrench and pack in strong aluminium box . • Long working life time du to system radial run-out less than 0.01mm . 27 Order No. Shank Model Collet Wrench 132-04- S41 132-04-S42 132-04- S43 JT40-ER16-70 JT40- ER25 -80 JT40- ER 32-60 ER16: dia . 2-3-4-5-6-7-8 -9-10mm ER25: dia.3-4-5 -6-8-10-12-14-16mm ER 32: dia .4-6-8-10-12-14-16-18-20mm W25D YER 25B YER 32B
