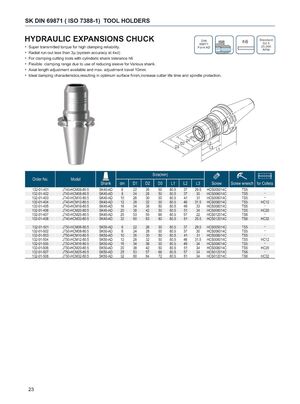

SK DIN 69871 ( ISO 7388-1) TOOL HOLDERS HYDRAULIC EXPANSIONS CHUCK • Super transmitted torque for high clamping reliability. • Radial run-out less than 3p (system accuracy at 4 xd) • For clamping cutting tools with cylinderic shank tolerance h6 DIN 69871 Form AD h6 Standard G 2.5 25 , 000 RPM • Flexible clamping range due to use of reducing sleeve for Various shank . • Axial length adjustment available and max. adjustment travel 10mm . • Ideal damping characteristics ,resulting in optimum surface finish ,increase cutter life time and spindle protection. Order No. Shank 132-01-401 132-01-402 132-01-403 132-01-404 132-01-405 132-01-406 132-01-407 132-01-408 JT40-HCM06-80.5 JT40-HCM08-80.5 JT40-HCM 10-80.5 JT40-HCM 12-80.5 JT40- HCM16-80.5 JT40-HCM20-80.5 JT40-HCM 25-80.5 JT40-HCM32-80.5 SK40-AD SK40-AD SK40-AD SK 40-AD SK40-AD SK 40-AD SK 40-AD SK 40-AD 132-01-501 132-01-502 132-01-503 132-01-504 132-01-505 132-01-506 132-01-507 132-01 -508 JT50- HCM06-80.5 JT50- HCM08-80.5 JT50-HCM10-80.5 JT50- HCM 12-80.5 JT50- HCM16-80.5 JT50- HCM 20-80.5 JT50- HCM 25-80.5 JT50- HCM32-80.5 SK 50-AD SK 50-AD SK50-AD SK 50-AD SK 50-AD SK50-AD SK 50-AD SK 50-AD 23 31.5 HCS005014C HCS006014C HCS008014C HCS008014C 25.5 HCS008014C HCS008014C HCS012014C HCS012014C TS5 TS5 TS5 TS5 TS5 TS5 TS6 TS6 HCS005014C HCS006014C HCS008014C HCS008014C HCS008014C HCS008014C HCS012014C HCS012014C TS5 TS5 TS5 TS5 TS5 TS5 TS6 TS6 29.5 HC 12 HC 20 HC32 HC 12 HC 20 HC32
