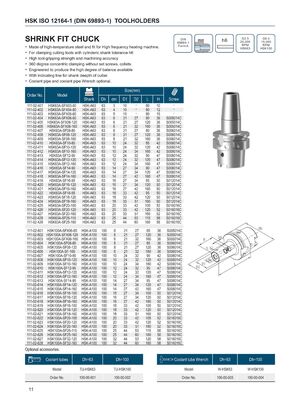

HSK ISO 12164-1 (DIN 69893-1) TOOLHOLDERS SHRINK FIT CHUCK • Made of high-temperature steel and fit for High frequency heating machine. • For clamping cutting tools with cylinderic shank tolerance h6 • High tool-gripping strength and machining accuracy • 360 degree concentric clamping without set screws, collets. • Engineered to produce the high degree of balance available • With indicating line for shank deepth of cutter. DIN 69893 - 1 Form A h6 G 2.5 25,000 RPM HSK 63 G 6.3 15 , 000 RPM HSK 100 • Coolant pipe and coolant pipe Wrench optional. Order No . Model 111-02-401 111-02-402 111-02-403 111-02-404 111-02-405 111-02-406 111-02-407 111-02-408 111-02-409 111-02-410 111-02-411 111-02-412 111-02-413 111-02-414 111-02-415 111-02-416 111-02-417 111-02-418 111-02-419 111-02-420 111-02-421 111-02-422 111-02-423 111-02-424 111-02-425 111-02-426 111-02-427 111-02-428 111-02-429 HSK63A-SFX03-80 HSK63A-SFX04-80 HSK63A-SFX05-80 HSK63A-SFX06-80 HSK63A -SFX06-120 HSK63A -SFX06-160 HSK63A- SF08 -80 HSK63A -SF08-120 HSK63A-SF08-160 HSK63A-SF10-85 HSK63A -SF10-120 HSK63A -SF10-160 HSK63A-SF12-90 HSK63A-SF12-120 HSK63A -SF12-160 HSK63A-SF14-90 HSK63A -SF14-120 HSK63A -SF14-160 HSK63A-SF16-95 HSK63A -SF16-120 HSK63A-SF16-160 HSK63A-SF18 -95 HSK63A -SF18-120 HSK63A-SF18-160 HSK63A -SF20-100 HSK63A -SF 20-120 HSK63A -SF 20-160 HSK63A -SF25-115 HSK63A -SF25-160 HSK -A 63 HSK -A63 HSK -A 63 HSK -A 63 HSK -A 63 HSK -A 63 HSK -A63 HSK -A 63 HSK -A 63 HSK -A 63 HSK -A 63 HSK -A63 HSK -A 63 HSK -A63 HSK -A 63 HSK -A63 HSK -A 63 HSK -A 63 HSK -A63 HSK -A 63 HSK -A63 HSK -A 63 HSK -A63 HSK -A63 HSK -A63 HSK -A63 HSK -A 63 HSK -A 63 HSK -A 63 111-02-601 HSK 100A -SFX06- 85 111-02-602 HSK 100A-SFX06-120 111-02-603 HSK 100A-SFX06-160 111-02-604 HSK 100A-SF08-85 111-02-605 HSK100A-SF08-120 HSK 100A -SF-160 111-02-606 111-02-607 HSK 100A-SF10-90 111-02-608 HSK 100A-SF10-120 111-02-609 HSK 100A-SF10-160 111-02-610 HSK 100A-SF12-95 111-02-611 HSK 100A-SF12-120 111-02-612 HSK 100A-SF12-160 111-02-613 HSK100A-SF14-95 111-02-614 HSK 100A-SF14-120 111-02-615 HSK 100A-SF14-160 111-02-616 HSK 100A-SF16-100 111-02- 617 HSK 100A-SF16-120 111-02-618 HSK 100A-SF16-160 111-02- 619 HSK 100A-SF18-100 111-02-620 HSK 100A-SF18-120 111-02-621 HSK 100A-SF18-160 111-02-622 HSK 100A-SF20-105 111-02-623 HSK 100A-SF 20-120 111-02- 624 HSK 100A-SF20-160 111-02-625 HSK 100A-SF25-115 111-02-626 HSK 100A-SF 25-160 111-02-627 HSK 100A-SF32-120 111-02-628 HSK 100A-SF32-160 HSK - A100 HSK - A100 HSK - A100 HSK - A100 HSK - A100 HSK - A100 HSK - A100 HSK - A100 HSK - A100 HSK - A100 HSK -A100 HSK - A100 HSK - A100 HSK - A100 HSK - A100 HSK - A100 HSK - A100 HSK-A100 HSK - A100 HSK-A100 HSK - A100 HSK - A100 HSK - A100 HSK - A100 HSK - A100 HSK - A100 HSK - A100 HSK - A100 Shank S005014C S005014C S005014C S006014C S006014C S006014C S008014C S008014C S008014C S008014C S008014C S008014C S008014C S008014C S008014C S012014C S012014C S012014C S012014C S012014C S012014C S016016C S016016C S016016C S016016C S016016C S005014C S005014C S005014C S006014C S006014C S006014C S008014C S008014C S008014C S008014C S008014C S008014C S008014C S008014C S008014C S012014C S012014C S012014C S012014C S012014C S012014C S016016C S016016C S016016C S016016C S016016C S016016C S016016C 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 Optional accessories: 11 Coolant tubes Dh=63 Dh=100 Model TU- HSK63 TU-HSK100 Order No. 100-00-001 100-00- 002 Coolant tube Wrench Dh=63 Dh=100 Model W-HSK63 W-HSK 100 Order No. 100-00-003 100-00-004
