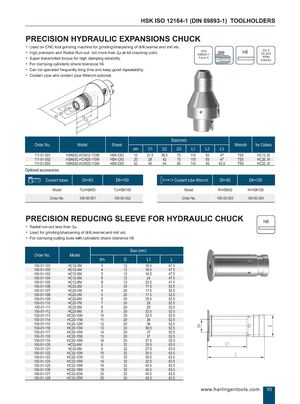

HSK ISO 12164-1 (DIN 69893-1) TOOLHOLDERS PRECISION HYDRAULIC EXPANSIONS CHUCK • Used on CNC tool grinding machine for grinding/ sharpening of drill,reamer,end mill etc. • High precision and Radial Run-out not more than 2p at 4d checking point. • Super transmitted torque for high clamping reliability. • For clamping cylinderic shank tolerance h6 • Can be operated frequently long time and keep good repeatability. • Coolant pipe and coolant pipe Wrench optional. DIN 69893 -1 Form C h6 G 2.5 25,000 RPM HSK 63 Order No. Model Shank Wrench for Collets 111-01- 001 111-01-002 111-01-003 HSK63C-HCM12-110M HSK63C-HCM20-110M HSK63C-HCM32-110M HSK -C63 HSK -C63 HSK -C63 TS5 TS5 TS5 HC12.. M HC20.. M HC32.. M Optional accessories: Coolant tubes Dh=63 Dh=100 Model TU-HSK63 TU-HSK 100 Order No. 100-00-001 100-00- 002 Dh=63 Dh=100 Model W-HSK63 W-HSK 100 Order No. 100-00-003 100- 00-004 Coolant tube Wrench PRECISION REDUCING SLEEVE FOR HYDRAULIC CHUCK h6 • Radial run-out less than 3p . • Used for grinding/sharpening of drill,reamer, end mill etc . • For clamping cutting tools with cylinderic shank tolerance h6 100-01-101 100-01-102 100-01-103 100-01-104 100-01-105 100-01-106 100-01-107 100-01-108 100-01-109 100-01-110 100-01-111 100-01-112 100-01-113 100-01-114 100-01-115 100-01-116 100-01-117 100-01-118 100-01-119 100-01-120 100-01-121 100-01-122 100-01-123 100-01-124 100-01-125 100-01-126 100-01-127 100-01-128 HC12-3M HC12-4M HC12-5M HC12-6M HC12-8M HC20-3M HC20-4M HC20-5M HC20-6M HC20-7M HC20-8M HC20-9M HC20-10M HC20-11M HC20-12M HC20-13M HC 20-14M HC 20-15M HC 20-16M HC32-6M HC32-8M HC32-10M HC32-12M HC32-14M HC32-16M HC32-18M HC32-20M HC32-25M 3 4 5 6 8 3 4 5 6 7 8 9 10 11 12 13 14 15 16 6 8 10 12 14 16 18 20 25 12 12 12 12 12 20 20 20 20 20 20 20 20 20 20 20 20 20 20 32 32 32 32 32 32 32 32 32 16.5 16.5 16.5 24 25.5 17.5 17.5 17.5 25.5 28 28 32.5 32.5 36 36 36.5 37 37 37.5 25.5 27.5 30.5 30.5 32.5 40.5 40.5 40.5 48.5 47.5 47.5 47.5 47.5 47.5 52.5 52.5 52.5 52.5 52.5 52.5 52.5 52.5 52.5 52.5 52.5 52.5 52.5 52.5 63.5 63.5 63.5 63.5 63.5 63.5 63.5 63.5 63.5 f . P- 11 CD 11 ter L1 L www. harlingentools . com
