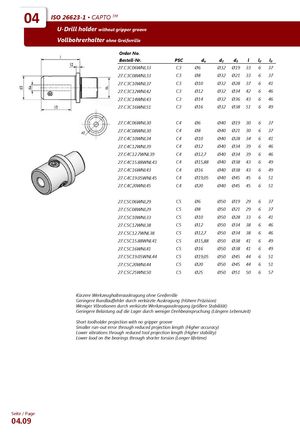

Каталог WSW оправки - страница 95

04 ISO 26623-1 ▪ CAPTO TM U-Drill holder without gripper groove Vollbohrerhalter ohne Greiferrille Order No. Bestell-Nr. PSC da d2 d3 l l2 l3 27.C3C06WNL33 C3 Ø6 Ø32 Ø19 33 6 37 27.C3C08WNL33 C3 Ø8 Ø32 Ø21 33 6 37 27.C3C10WNL37 C3 Ø10 Ø32 Ø28 37 6 41 27.C3C12WNL42 C3 Ø12 Ø32 Ø34 42 6 46 27.C3C14WNL43 C3 Ø14 Ø32 Ø36 43 6 46 27.C3C16WNL51 C3 Ø16 Ø32 Ø38 51 6 49 27.C4C06WNL30 C4 Ø6 Ø40 Ø19 30 6 37 27.C4C08WNL30 C4 Ø8 Ø40 Ø21 30 6 37 27.C4C10WNL34 C4 Ø10 Ø40 Ø28 34 6 41 27.C4C12WNL39 C4 Ø12 Ø40 Ø34 39 6 46 27.C4C12.7WNL39 C4 Ø12,7 Ø40 Ø34 39 6 46 27.C4C15.88WNL43 C4 Ø15,88 Ø40 Ø38 43 6 49 27.C4C16WNL43 C4 Ø16 Ø40 Ø38 43 6 49 27.C4C19.05WNL45 C4 Ø19,05 Ø40 Ø45 45 6 51 27.C4C20WNL45 C4 Ø20 Ø40 Ø45 45 6 51 27.C5C06WNL29 C5 Ø6 Ø50 Ø19 29 6 37 27.C5C08WNL29 C5 Ø8 Ø50 Ø21 29 6 37 27.C5C10WNL33 C5 Ø10 Ø50 Ø28 33 6 41 27.C5C12WNL38 C5 Ø12 Ø50 Ø34 38 6 46 27.C5C12.7WNL38 C5 Ø12,7 Ø50 Ø34 38 6 46 27.C5C15.88WNL41 C5 Ø15,88 Ø50 Ø38 41 6 49 27.C5C16WNL41 C5 Ø16 Ø50 Ø38 41 6 49 27.C5C19.05WNL44 C5 Ø19,05 Ø50 Ø45 44 6 51 27.C5C20WNL44 C5 Ø20 Ø50 Ø45 44 6 51 27.C5C25WNL50 C5 Ø25 Ø50 Ø51 50 6 57 Kürzere Werkzeughalterauskragung ohne Greiferrille Geringere Rundlauffehler durch verkürzte Auskragung (Höhere Präzision) Weniger Vibrationen durch verkürzte Werkzeugauskragung (größere Stabilität) Geringere Belastung auf die Lager durch weniger Drehbeanspruchung (Längere Lebenszeit) Short toolholder projection with no gripper groove Smaller run-out error through reduced projection length (Higher accuracy) Lower vibrations through reduced tool projection length (Higher stability) Lower load on the bearings through shorter torsion (Longer lifetime) Seite / Page 04.09
