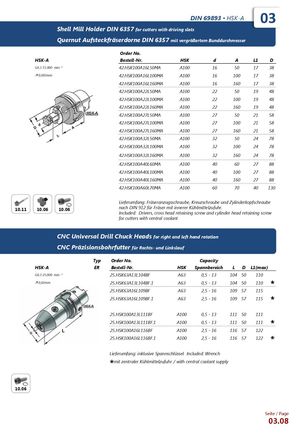

Каталог WSW оправки - страница 62

DIN 69893 ▪ HSK-A 03 Shell Mill Holder DIN 6357 for cutters with driving slots Quernut Aufsteckfräserdorne DIN 6357 mit vergrößertem Bunddurchmesser Order No. HSK-A Bestell-Nr. HSK d A L1 D G6.3 15.000 min -1 42.HSK100A16L50MA A100 16 50 17 38  0,003mm 42.HSK100A16L100MA A100 16 100 17 38 42.HSK100A16L160MA A100 16 160 17 38 42.HSK100A22L50MA A100 22 50 19 48 42.HSK100A22L100MA A100 22 100 19 48 42.HSK100A22L160MA A100 22 160 19 48 42.HSK100A27L50MA A100 27 50 21 58 42.HSK100A27L100MA A100 27 100 21 58 42.HSK100A27L160MA A100 27 160 21 58 42.HSK100A32L50MA A100 32 50 24 78 42.HSK100A32L100MA A100 32 100 24 78 42.HSK100A32L160MA A100 32 160 24 78 42.HSK100A40L60MA A100 40 60 27 88 42.HSK100A40L100MA A100 40 100 27 88 42.HSK100A40L160MA A100 40 160 27 88 42.HSK100A60L70MA A100 60 70 40 130 Lieferumfang: Fräseranzugsschraube, Kreuzschraube und Zylinderkopfschraube 10.11 10.06 10.06 nach DIN 912 für Fräser mit innerer Kühlmittelzufuhr. Included: Drivers, cross head retaining screw and cylinder head retaining screw for cutters with central coolant CNC Universal Drill Chuck Heads for right and left hand rotation CNC Präzisionsbohrfutter für Rechts- und Linkslauf Typ Order No. Capacity HSK-A ER Bestell-Nr. HSK Spannbereich L D L1(max) G6.3 25.000 min -1 25.HSK63A13L104BF A63 0,5 - 13 104 50 110  0,02mm 25.HSK63A13L104BF.1 A63 0,5 - 13 104 50 110  25.HSK63A16L109BF A63 2,5 - 16 109 57 115 25.HSK63A16L109BF.1 A63 2,5 - 16 109 57 115  25.HSK100A13L111BF A100 0,5 - 13 111 50 111 25.HSK100A13L111BF.1 A100 0,5 - 13 111 50 111  L 25.HSK100A16L116BF A100 2,5 - 16 116 57 122 25.HSK100A16L116BF.1 A100 2,5 - 16 116 57 122  Lieferumfang: inklusive Spannschlüssel Included: Wrench mit zentraler Kühlmittelzufuhr / with central coolant supply 10.06 Seite / Page 03.08
