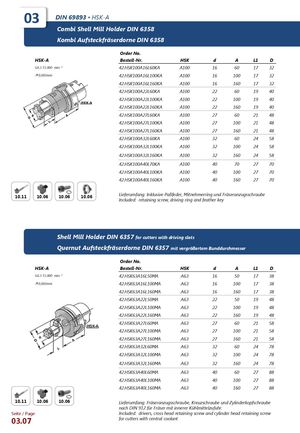

Каталог WSW оправки - страница 61

03 DIN 69893 ▪ HSK-A Combi Shell Mill Holder DIN 6358 Kombi Aufsteckfräserdorne DIN 6358 Order No. HSK-A Bestell-Nr. HSK d A L1 D G6.3 15.000 min -1 42.HSK100A16L60KA A100 16 60 17 32  0,003mm 42.HSK100A16L100KA A100 16 100 17 32 42.HSK100A16L160KA A100 16 160 17 32 42.HSK100A22L60KA A100 22 60 19 40 42.HSK100A22L100KA A100 22 100 19 40 42.HSK100A22L160KA A100 22 160 19 40 42.HSK100A27L60KA A100 27 60 21 48 42.HSK100A27L100KA A100 27 100 21 48 42.HSK100A27L160KA A100 27 160 21 48 42.HSK100A32L60KA A100 32 60 24 58 42.HSK100A32L100KA A100 32 100 24 58 42.HSK100A32L160KA A100 32 160 24 58 42.HSK100A40L70KA A100 40 70 27 70 42.HSK100A40L100KA A100 40 100 27 70 42.HSK100A40L160KA A100 40 160 27 70 10.11 10.06 10.06 10.06 Lieferumfang: Inklusive Paßfeder, Mitnehmerring und FräseranzugsschraubeIncluded:retaining screw, driving ring and feather key Shell Mill Holder DIN 6357 for cutters with driving slots Quernut Aufsteckfräserdorne DIN 6357 mit vergrößertem Bunddurchmesser Order No. HSK-A Bestell-Nr. HSK d A L1 D G6.3 15.000 min -1 42.HSK63A16L50MA A63 16 50 17 38  0,003mm 42.HSK63A16L100MA A63 16 100 17 38 42.HSK63A16L160MA A63 16 160 17 38 42.HSK63A22L50MA A63 22 50 19 48 42.HSK63A22L100MA A63 22 100 19 48 42.HSK63A22L160MA A63 22 160 19 48 42.HSK63A27L60MA A63 27 60 21 58 42.HSK63A27L100MA A63 27 100 21 58 42.HSK63A27L160MA A63 27 160 21 58 42.HSK63A32L60MA A63 32 60 24 78 42.HSK63A32L100MA A63 32 100 24 78 42.HSK63A32L160MA A63 32 160 24 78 42.HSK63A40L60MA A63 40 60 27 88 42.HSK63A40L100MA A63 40 100 27 88 42.HSK63A40L160MA A63 40 160 27 88 10.11 10.06 10.06 Lieferumfang: Fräseranzugsschraube, Kreuzschraube und Zylinderkopfschraube nach DIN 912 für Fräser mit innerer Kühlmittelzufuhr. Seite / Page Included: drivers, cross head retaining screw and cylinder head retaining screw 03.07 for cutters with central coolant
