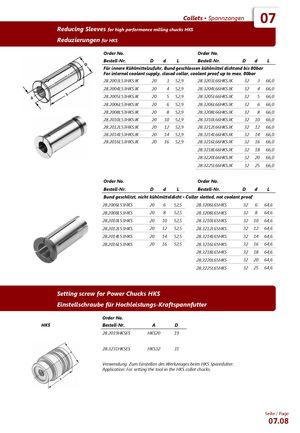

Collets ▪ Spannzangen 07 Reducing Sleeves for high performance milling chucks HKS Reduzierungen für HKS Order No. Order No. Bestell-Nr. D d L Bestell-Nr. D d L Für innere Kühlmittelzufuhr, Bund geschlossen kühlmittel dichtend bis 80bar For internal coolant supply, closed collar, coolant proof up to max. 80bar 28.2003L53HKS.IK 20 3 52,9 28.3203L66HKS.IK 32 3 66,0 28.2004L53HKS.IK 20 4 52,9 28.3204L66HKS.IK 32 4 66,0 28.2005L53HKS.IK 20 5 52,9 28.3205L66HKS.IK 32 5 66,0 28.2006L53HKS.IK 20 6 52,9 28.3206L66HKS.IK 32 6 66,0 28.2008L53HKS.IK 20 8 52,9 28.3208L66HKS.IK 32 8 66,0 28.2010L53HKS.IK 20 10 52,9 28.3210L66HKS.IK 32 10 66,0 28.2012L53HKS.IK 20 12 52,9 28.3212L66HKS.IK 32 12 66,0 28.2014L53HKS.IK 20 14 52,9 28.3214L66HKS.IK 32 14 66,0 28.2016L53HKS.IK 20 16 52,9 28.3216L66HKS.IK 32 16 66,0 28.3218L66HKS.IK 32 18 66,0 28.3220L66HKS.IK 32 20 66,0 28.3225L66HKS.IK 32 25 66,0 Order No. Order No. Bestell-Nr. D d L Bestell-Nr. D d L Bund geschlitzt, nicht kühlmitteldicht ▪ Collar slotted, not coolant proof 28.2006L53HKS 20 6 52,5 28.3206L65HKS 32 6 64,6 28.2008L53HKS 20 8 52,5 28.3208L65HKS 32 8 64,6 28.2010L53HKS 20 10 52,5 28.3210L65HKS 32 10 64,6 28.2012L53HKS 20 12 52,5 28.3212L65HKS 32 12 64,6 28.2014L53HKS 20 14 52,5 28.3214L65HKS 32 14 64,6 28.2016L53HKS 20 16 52,5 28.3216L65HKS 32 16 64,6 28.3218L65HKS 32 18 64,6 28.3220L65HKS 32 20 64,6 28.3225L65HKS 32 25 64,6 Setting screw for Power Chucks HKS Einstellschraube für Hochleistungs-Kraftspannfutter Order No. HKS Bestell-Nr. A D 28.2019HKSES HKS20 19 28.3231HKSES HKS32 31 Verwendung: Zum Einstellen des Werkzeuges beim HKS Spannfutter. Application: For setting the tool in the HKS collet chucks. Seite / Page 07.08
