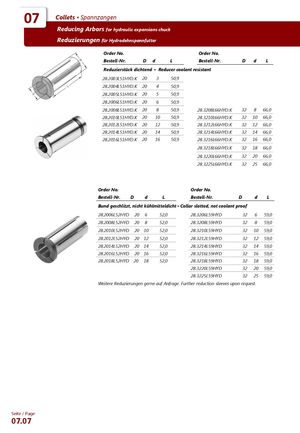

07 Collets ▪ Spannzangen Reducing Arbors for hydraulic expansions chuck Reduzierungen für Hydrodehnspannfutter Order No. Order No. Bestell-Nr. D d L Bestell-Nr. D d L Reduzierstück dichtend ▪ Reducer coolant resistant 28.2003L51HYD.K 20 3 50,9 28.2004L51HYD.K 20 4 50,9 28.2005L51HYD.K 20 5 50,9 28.2006L51HYD.K 20 6 50,9 28.2008L51HYD.K 20 8 50,9 28.3208L66HYD.K 32 8 66,0 28.2010L51HYD.K 20 10 50,9 28.3210L66HYD.K 32 10 66,0 28.2012L51HYD.K 20 12 50,9 28.3212L66HYD.K 32 12 66,0 28.2014L51HYD.K 20 14 50,9 28.3214L66HYD.K 32 14 66,0 28.2016L51HYD.K 20 16 50,9 28.3216L66HYD.K 32 16 66,0 28.3218L66HYD.K 32 18 66,0 28.3220L66HYD.K 32 20 66,0 28.3225L66HYD.K 32 25 66,0 Order No. Order No. Bestell-Nr. D d L Bestell-Nr. D d L Bund geschlitzt, nicht kühlmitteldicht ▪ Collar slotted, not coolant proof 28.2006L52HYD 20 6 52,0 28.3206L59HYD 32 6 59,0 28.2008L52HYD 20 8 52,0 28.3208L59HYD 32 8 59,0 28.2010L52HYD 20 10 52,0 28.3210L59HYD 32 10 59,0 28.2012L52HYD 20 12 52,0 28.3212L59HYD 32 12 59,0 28.2014L52HYD 20 14 52,0 28.3214L59HYD 32 14 59,0 28.2016L52HYD 20 16 52,0 28.3216L59HYD 32 16 59,0 28.2018L52HYD 20 18 52,0 28.3218L59HYD 32 18 59,0 28.3220L59HYD 32 20 59,0 28.3225L59HYD 32 25 59,0 Weitere Reduzierungen gerne auf Anfrage. Further reduction sleeves upon request. Seite / Page 07.07
