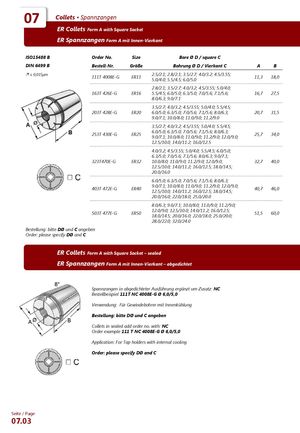

07 Collets ▪ Spannzangen ER Collets Form A with Square Socket ER Spannzangen Form A mit Innen-Vierkant ISO15488 B Order No. Size Bore Ø D / square C DIN 6499 B Bestell-Nr. Größe Bohrung Ø D / Vierkant C A B  ≤ 0,015μm 111T 4008E-G ER11 2.5/2.1; 2.8/2.1; 3.5/2.7; 4.0/3.2; 4.5/3.55;5.0/4.0; 5.5/4.5; 6.0/5.011,318,0 2.8/2.1; 3.5/2.7; 4.0/3.2; 4.5/3.55; 5.0/4.0; 163T 426E-G ER16 5.5/4.5; 6.0/5.0; 6.3/5.0; 7.0/5.6; 7.1/5.6; 16,7 27,5 8.0/6.3; 9.0/7.1 3.5/2.7; 4.0/3.2; 4.5/3.55; 5.0/4.0; 5.5/4.5; 203T 428E-G ER20 6.0/5.0; 6.3/5.0; 7.0/5.6; 7.1/5.6; 8.0/6.3; 20,7 31,5 9.0/7.1; 10.0/8.0; 11.0/9.0; 11.2/9.0 3.5/2.7; 4.0/3.2; 4.5/3.55; 5.0/4.0; 5.5/4.5; 253T 430E-G ER25 6.0/5.0; 6.3/5.0; 7.0/5.6; 7.1/5.6; 8.0/6.3;9.0/7.1; 10.0/8.0; 11.0/9.0; 11.2/9.0; 12.0/9.0;25,734,0 12.5/10.0; 14.0/11.2; 16.0/12.5 4.0/3.2; 4.5/3.55; 5.0/4.0; 5.5/4.5; 6.0/5.0; 6.3/5.0; 7.0/5.6; 7.1/5.6; 8.0/6.3; 9.0/7.1; 323T470E-G ER32 10.0/8.0; 11.0/9.0; 11.2/9.0; 12.0/9.0; 32,7 40,0 12.5/10.0; 14.0/11.2; 16.0/12.5; 18.0/14.5; 20.0/16.0 6.0/5.0; 6.3/5.0; 7.0/5.6; 7.1/5.6; 8.0/6.3; 403T 472E-G ER40 9.0/7.1; 10.0/8.0; 11.0/9.0; 11.2/9.0; 12.0/9.0;12.5/10.0; 14.0/11.2; 16.0/12.5; 18.0/14.5;40,746,0 20.0/16.0; 22.0/18.0; 25.0/20.0 8.0/6.3; 9.0/7.1; 10.0/8.0; 11.0/9.0; 11.2/9.0; 503T 477E-G ER50 12.0/9.0; 12.5/10.0; 14.0/11.2; 16.0/12.5;18.0/14.5; 20.0/16.0; 22.0/18.0; 25.0/20.0;51,560,0 28.0/22.0; 32.0/24.0 Bestellung: bitte DØ und C angeben Order: please specify DØ and C ER Collets Form A with Square Socket – sealed ER Spannzangen Form A mit Innen-Vierkant – abgedichtet Spannzangen in abgedichteter Ausführung ergänzt um Zusatz: NC Bestellbeispiel 111T NC 4008E-G Ø 6,0/5,0 Verwendung: Für Gewindebohrer mit Innenkühlung Bestellung: bitte DØ und C angeben Collets in sealed add order no. with: NC Order example 111 T NC 4008E-G Ø 6,0/5,0 Application: For Tap holders with internal cooling Order: please specify DØ and C Seite / Page 07.03
