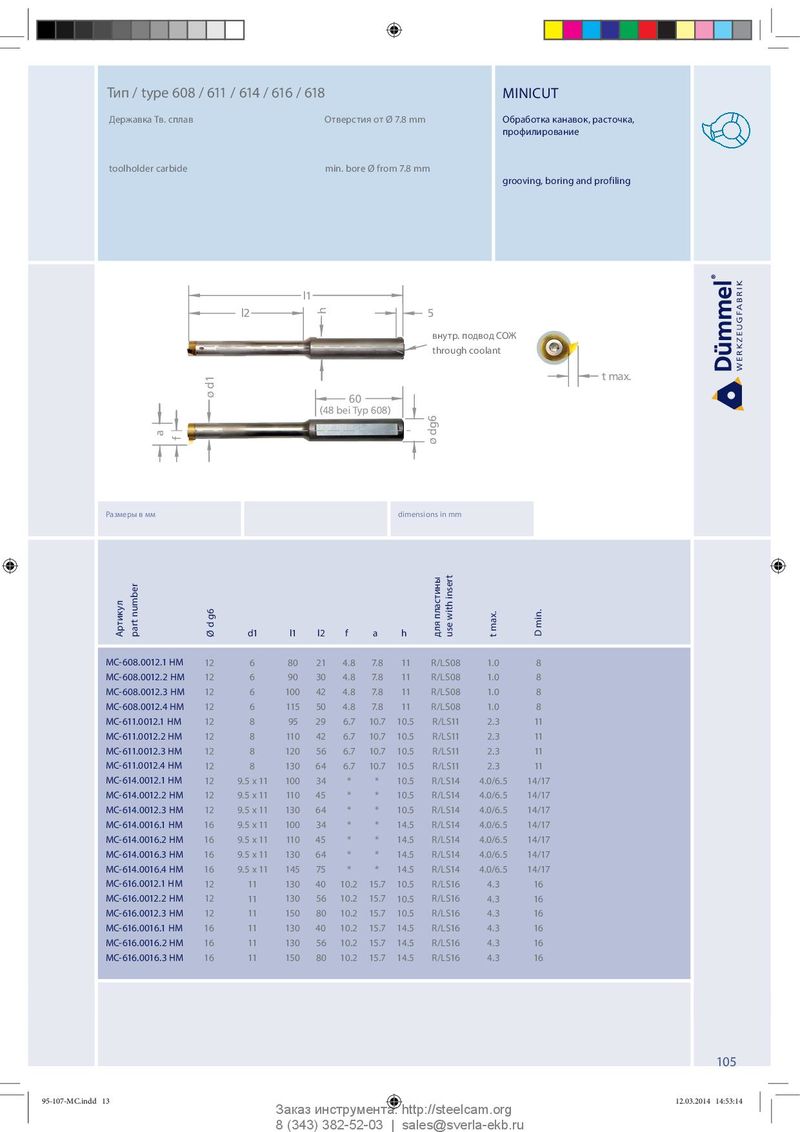

Общий каталог Dümmel 2014 - страница 102

Тип / type 608 / 611 / 614 / 616 / 618 MINICUT Державка Тв. сплав Отверстия от Ø 7.8 mm Обработка канавок, расточка, профилирование toolholder carbide min. bore Ø from 7.8 mm grooving, boring and profiling l1 l2 h 5 Innere внутр. подвод СОЖ Kühlmittelzufuhr through coolant through coolant t max. ø d1 60 (48 bei Typ 608) a f ø dg6 Размеры в мм dimensions in mm Артикул part number d1 l1 l2 f a h Ø d g6 для пластины use with insert t max. D min. MC-608.0012.1 HM 12 6 80 21 4.8 7.8 11 R/LS08 1.0 8 MC-608.0012.2 HM 12 6 90 30 4.8 7.8 11 R/LS08 1.0 8 MC-608.0012.3 HM 12 6 100 42 4.8 7.8 11 R/LS08 1.0 8 MC-608.0012.4 HM 12 6 115 50 4.8 7.8 11 R/LS08 1.0 8 MC-611.0012.1 HM 12 8 95 29 6.7 10.7 10.5 R/LS11 2.3 11 MC-611.0012.2 HM 12 8 110 42 6.7 10.7 10.5 R/LS11 2.3 11 MC-611.0012.3 HM 12 8 120 56 6.7 10.7 10.5 R/LS11 2.3 11 MC-611.0012.4 HM 12 8 130 64 6.7 10.7 10.5 R/LS11 2.3 11 MC-614.0012.1 HM 12 9.5 x 11 100 34 * * 10.5 R/LS14 4.0/6.5 14/17 MC-614.0012.2 HM 12 9.5 x 11 110 45 * * 10.5 R/LS14 4.0/6.5 14/17 MC-614.0012.3 HM 12 9.5 x 11 130 64 * * 10.5 R/LS14 4.0/6.5 14/17 MC-614.0016.1 HM 16 9.5 x 11 100 34 * * 14.5 R/LS14 4.0/6.5 14/17 MC-614.0016.2 HM 16 9.5 x 11 110 45 * * 14.5 R/LS14 4.0/6.5 14/17 MC-614.0016.3 HM 16 9.5 x 11 130 64 * * 14.5 R/LS14 4.0/6.5 14/17 MC-614.0016.4 HM 16 9.5 x 11 145 75 * * 14.5 R/LS14 4.0/6.5 14/17 MC-616.0012.1 HM 12 11 130 40 10.2 15.7 10.5 R/LS16 4.3 16 MC-616.0012.2 HM 12 11 130 56 10.2 15.7 10.5 R/LS16 4.3 16 MC-616.0012.3 HM 12 11 150 80 10.2 15.7 10.5 R/LS16 4.3 16 MC-616.0016.1 HM 16 11 130 40 10.2 15.7 14.5 R/LS16 4.3 16 MC-616.0016.2 HM 16 11 130 56 10.2 15.7 14.5 R/LS16 4.3 16 MC-616.0016.3 HM 16 11 150 80 10.2 15.7 14.5 R/LS16 4.3 16 105 95-107-MC.indd 13 95-107-MC.indd 13 12.03.2014 14:53:14 12.03.2014 14:53:14 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
