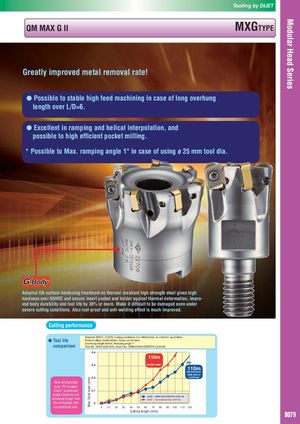

Tooling by DIJET QM MAX G II MXGTYPE Greatly improved metal removal rate! O Possible to stable high feed machining in case of long overhung length over L/D=6. O Excellent in ramping and helical interpolation, and possible to high efficient pocket milling. * Possible to Max. ramping angle 1° in case of using ø 25 mm tool dia. Adopted GN surface-hardening treatment on thermal resistant high strength steel gives high hardness over 65HRC and secure insert pocket and holder against thermal deformation, impro- ved body durability and tool life by 30% or more. Make it difficult to be damaged even under severe cutting conditions. Also rust-proof and anti-welding effect is much improved. Cutting performance Material: SKD11 (1.2379, Cutting conditions: Vc=180mm/min, fz=1.2mm/t, ap=0,8mm, O Tool life Pocket milling 75x60x30mm, Down cut Air b lo w comparison Overhung length 60mm, Ramping an gle 1°Tool No.: MXG-4025-M12, Insert No.: ENMU100412ZER-PH (JC8b118) 0.4 110m ‫ڸ‬ 0.3 Large wear ‫ڸ‬ ‫ە‬ PH ‫ڸ‬ 110m ‫ە‬ Normal wear 0.2 ‫ە‬‫ڸ‬ (still able tocontinue) New strong edgetype “PH breakerinsert” supressedsmall chipping andachieved longer toollife compared with‫ە‬0.10‫ەڸ‬‫ڸە‬‫ەڸ‬‫ەڸ‬‫ەڸ‬‫ڸە‬‫ڸ‬‫ە‬‫ە‬●DIJET: ENMU100412ZER-PH (JC8118)▲DIJET:Conventional tool (JC8118) conventional tool. 0 10 20 30 40 50 60 70 80 90 100 110 120 Cutting length (mm) B079 Max. flank wear (mm)
