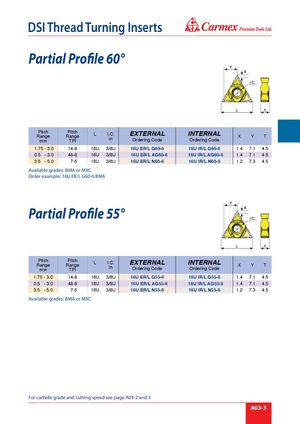

® DSI Thread Turning Inserts Partial Profile 60° PitchRangemm PitchRangeTPIL I.C.in EXTERNALOrdering Code INTERNALOrdering Code X Y T 1.75 - 3.0 14-8 16U 3/8U 16U ER/L G60-6 16U IR/L G60-6 1.4 7.1 4.5 0.5 - 3.0 48-8 16U 3/8U 16U ER/L AG60-6 16U IR/L AG60-6 1.4 7.1 4.5 3.5 - 5.0 7-5 16U 3/8U 16U ER/L N60-6 16U IR/L N60-6 1.2 7.3 4.5 Available grades: BMA or MXC Order example: 16U ER/L G60-6 BMA Partial Profile 55° PitchRangemm PitchRangeTPIL I.C.in EXTERNALOrdering Code INTERNALOrdering Code X Y T 1.75 - 3.0 14-8 16U 3/8U 16U ER/L G55-6 16U IR/L G55-6 1.4 7.1 4.5 0.5 - 3.0 48-8 16U 3/8U 16U ER/L AG55-6 16U IR/L AG55-6 1.4 7.1 4.5 3.5 - 5.0 7-5 16U 3/8U 16U ER/L N55-6 16U IR/L N55-6 1.2 7.3 4.5 Available grades: BMA or MXC For carbide grade and cutting speed see page A04-2 and 3 A03-3
