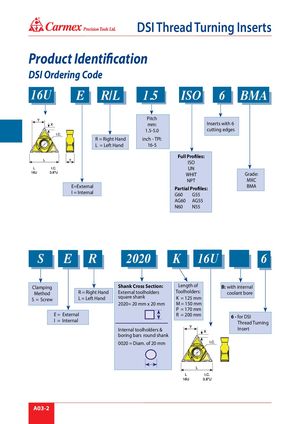

® DSI Thread Turning Inserts Product Identification DSI Ordering Code 16U E R/L 1.5 ISO 6 BMA Pitch mm: Inserts with 6 1.5-5.0  cutting edges R = Right Hand inch - TPI: L = Left Hand 16-5  Full Profiles: ISO UN WHIT Grade: NPT MXC E=External Partial Profiles: BMA I = Internal G60 G55 AG60 AG55 N60 N55 S E R 2020 K 16U 6 Clamping Shank Cross Section: Length of B: with internal Method S = Screw  R = Right Hand External toolholders Toolholders:L = Left Handsquare shank K = 125 mmcoolant bore 2020= 20 mm x 20 mm M = 150 mm P = 170 mm E = External R = 200 mm 6 - for DSI I = Internal Thread Turning Internal toolholders & Insert boring bars  round shank 0020 = Diam. of 20 mm  A03-2
