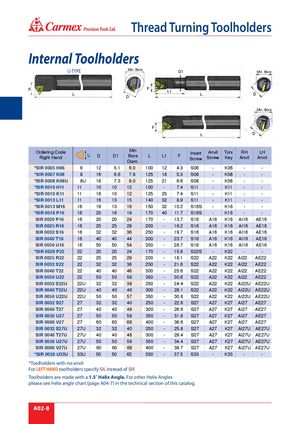

Каталог Carmex общий 2021 - страница 72

® Thread Turning Toolholders Internal Toolholders U-TYPE MiMnin.. BBoreore D1 Min. Bore F L F L1D L D Min. Bore F L D Ordering CodeRight Hand L D MinD1Bore LDiam. L1 F Insert Anvil Torx RHScrewScrewKeyAnvilLHAnvil *SIR 0005 H06 6 12 5.1 6.0 100 12 4.3 S06 - K06 - - *SIR 0007 K08 8 16 6.6 7.8 125 18 5.3 S08 - K08 - - *SIR 0008 K08U 8U 16 7.3 9.0 125 21 6.6 S08 - K08 - - *SIR 0010 H11 11 10 10 12 100 - 7.4 S11 - K11 - - *SIR 0010 K11 11 16 10 12 125 25 7.4 S11 - K11 - - *SIR 0013 L11 11 16 13 15 140 32 8.9 S11 - K11 - - *SIR 0013 M16 16 16 13 16 150 32 10.2 S16S - K16 - - *SIR 0016 P16 16 20 16 19 170 40 11.7 S16S - K16 - - SIR 0020 P16 16 20 20 24 170 - 13.7 S16 A16 K16 AI16 AE16 SIR 0025 R16 16 25 25 29 200 - 16.2 S16 A16 K16 AI16 AE16 SIR 0032 S16 16 32 32 36 250 - 19.7 S16 A16 K16 AI16 AE16 SIR 0040 T16 16 40 40 44 300 - 23.7 S16 A16 K16 AI16 AE16 SIR 0050 U16 16 50 50 54 350 - 28.7 S16 A16 K16 AI16 AE16 *SIR 0020 P22 22 20 20 24 170 - 15.6 S22S - K22 - - SIR 0025 R22 22 25 25 29 200 - 18.1 S22 A22 K22 AI22 AE22 SIR 0032 S22 22 32 32 38 250 - 21.6 S22 A22 K22 AI22 AE22 SIR 0040 T22 22 40 40 46 300 - 25.6 S22 A22 K22 AI22 AE22 SIR 0050 U22 22 50 50 56 350 - 30.6 S22 A22 K22 AI22 AE22 SIR 0032 S22U 22U 32 32 38 250 - 24.4 S22 A22 K22 AI22U AE22U SIR 0040 T22U 22U 40 40 46 300 - 28.1 S22 A22 K22 AI22U AE22U SIR 0050 U22U 22U 50 50 57 350 - 30.8 S22 A22 K22 AI22U AE22U SIR 0032 S27 27 32 32 40 250 - 22.6 S27 A27 K27 AI27 AE27 SIR 0040 T27 27 40 40 48 300 - 26.6 S27 A27 K27 AI27 AE27 SIR 0050 U27 27 50 50 58 350 - 31.6 S27 A27 K27 AI27 AE27 SIR 0060 V27 27 60 60 68 400 - 36.6 S27 A27 K27 AI27 AE27 SIR 0032 S27U 27U 32 32 40 250 - 25.8 S27 A27 K27 AI27U AE27U SIR 0040 T27U 27U 40 40 48 300 - 29.4 S27 A27 K27 AI27U AE27U SIR 0050 U27U 27U 50 50 58 350 - 34.4 S27 A27 K27 AI27U AE27U SIR 0060 V27U 27U 60 60 68 400 - 39.7 S27 A27 K27 AI27U AE27U *SIR 0050 U33U 33U 50 50 62 350 - 37.5 S33 - K33 - - *Toolholders with no anvil For LEFT HAND toolholders specify SIL instead of SIR Toolholders are made with a 1.5˚ Helix Angle. For other Helix Angles please see helix angle chart (page A04-7) in the technical section of this catalog. A02-8
