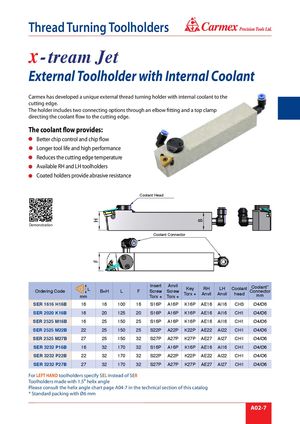

® Thread Turning Toolholders x -tream Jet External Toolholder with Internal Coolant Carmex has developed a unique external thread turning holder with internal coolant to the cutting edge. The holder includes two connecting options through an elbow fitting and a top clamp directing the coolant flow to the cutting edge. The coolant flow provides: Better chip control and chip flow Longer tool life and high performance Reduces the cutting edge temperature Available RH and LH toolholders Coated holders provide abrasive resistance Coolant Head Demonstration Coolant Connector Ordering Code L B=H Lmm F InsertScrewTorx +AnvilScrewTorx +KeyTorx +RHAnvilLHAnvilCoolantheadCoolant*Connectormm SER 1616 H16B 16 16 100 16 S16P A16P K16P AE16 AI16 CH3 Ø4/Ø6 SER 2020 K16B 16 20 125 20 S16P A16P K16P AE16 AI16 CH1 Ø4/Ø6 SER 2525 M16B 16 25 150 25 S16P A16P K16P AE16 AI16 CH1 Ø4/Ø6 SER 2525 M22B 22 25 150 25 S22P A22P K22P AE22 AI22 CH1 Ø4/Ø6 SER 2525 M27B 27 25 150 32 S27P A27P K27P AE27 AI27 CH1 Ø4/Ø6 SER 3232 P16B 16 32 170 32 S16P A16P K16P AE16 AI16 CH1 Ø4/Ø6 SER 3232 P22B 22 32 170 32 S22P A22P K22P AE22 AI22 CH1 Ø4/Ø6 SER 3232 P27B 27 32 170 32 S27P A27P K27P AE27 AI27 CH1 Ø4/Ø6 For LEFT HAND toolholders specify SEL instead of SER Toolholders made with 1.5⁰ helix angle Please consult the helix angle chart page A04-7 in the technical section of this catalog * Standard packing with Ø6 mm A02-7 HF B
