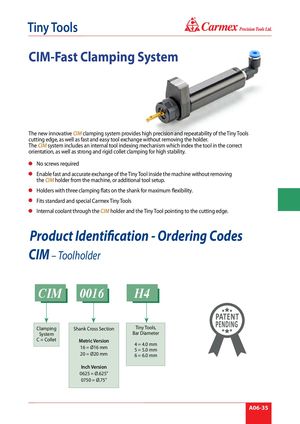

® Tiny Tools CIM-Fast Clamping System The new innovative CIM clamping system provides high precision and repeatability of the Tiny Tools cutting edge, as well as fast and easy tool exchange without removing the holder. The CIM system includes an internal tool indexing mechanism which index the tool in the correct orientation, as well as strong and rigid collet clamping for high stability. No screws required Enable fast and accurate exchange of the Tiny Tool inside the machine without removing the CIM holder from the machine, or additional tool setup. Holders with three clamping flats on the shank for maximum flexibility. Fits standard and special Carmex Tiny Tools Internal coolant through the CIM holder and the Tiny Tool pointing to the cutting edge. Product Identification - Ordering Codes CIM – Toolholder CIM 0016 H4 Clamping Shank Cross Section Tiny Tools, System Bar Diameter C = Collet Metric Version 16 = Ø16 mm 4 = 4.0 mm5 = 5.0 mm 20 = Ø20 mm 6 = 6.0 mm Inch Version 0625 = Ø.625” 0750 = Ø.75” A06-35
