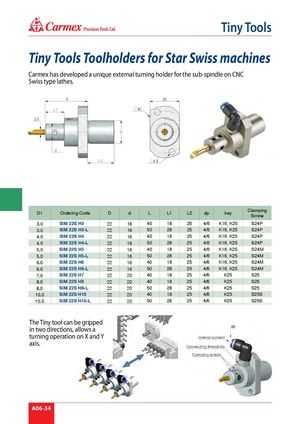

® Tiny Tools Tiny Tools Toolholders for Star Swiss machines Carmex has developed a unique external turning holder for the sub-spindle on CNC Swiss type lathes. D1 Ordering Code D d L L1 L2 dp key ClampingScrew 3.0 SIM 22S H3 22 16 40 18 25 4/6 K16, K25 S24P 3.0 SIM 22S H3-L 22 16 50 28 25 4/6 K16, K25 S24P 4.0 SIM 22S H4 22 16 40 18 25 4/6 K16, K25 S24P 4.0 SIM 22S H4-L 22 16 50 28 25 4/6 K16, K25 S24P 5.0 SIM 22S H5 22 16 40 18 25 4/6 K16, K25 S24M 5.0 SIM 22S H5-L 22 16 50 28 25 4/6 K16, K25 S24M 6.0 SIM 22S H6 22 16 40 18 25 4/6 K16, K25 S24M 6.0 SIM 22S H6-L 22 16 50 28 25 4/6 K16, K25 S24M 7.0 SIM 22S H7 22 20 40 18 25 4/6 K25 S25 8.0 SIM 22S H8 22 20 40 18 25 4/6 K25 S25 8.0 SIM 22S H8-L 22 20 50 28 25 4/6 K25 S25 10.0 SIM 22S H10 22 20 40 18 25 4/6 K25 S25S 10.0 SIM 22S H10-L 22 20 50 28 25 4/6 K25 S25S The Tiny tool can be gripped in two directions, allows a turning operation on X and Y axis. A06-34
